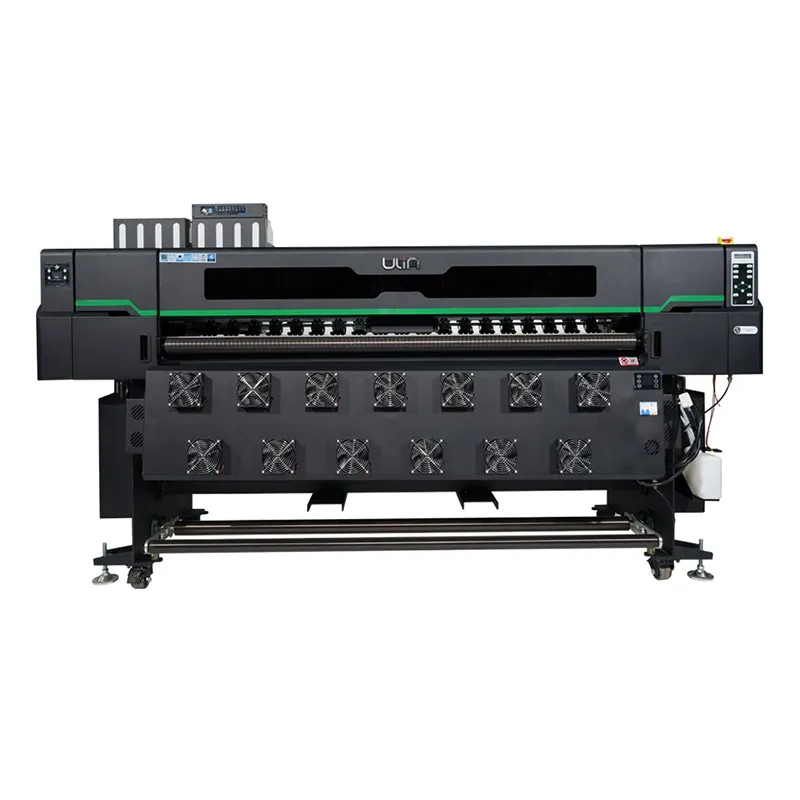

Paper Box Printing Machine
Head Type and No.: Epson i3200-A1
Printing Speed: 4H,4pass: 50m²/H，6pass: 32m²/H，8pass: 25m²/H
Hangzhou Yulan Technology Co., Ltd. is one of the leading manufacturers and suppliers of paper box printing machine in China, specialized in providing high quality equipment with the latest design. If you're going to wholesale the newest paper box printing machine made in China, welcome to get more information from our factory.
Product name：Paper box Printing Machine

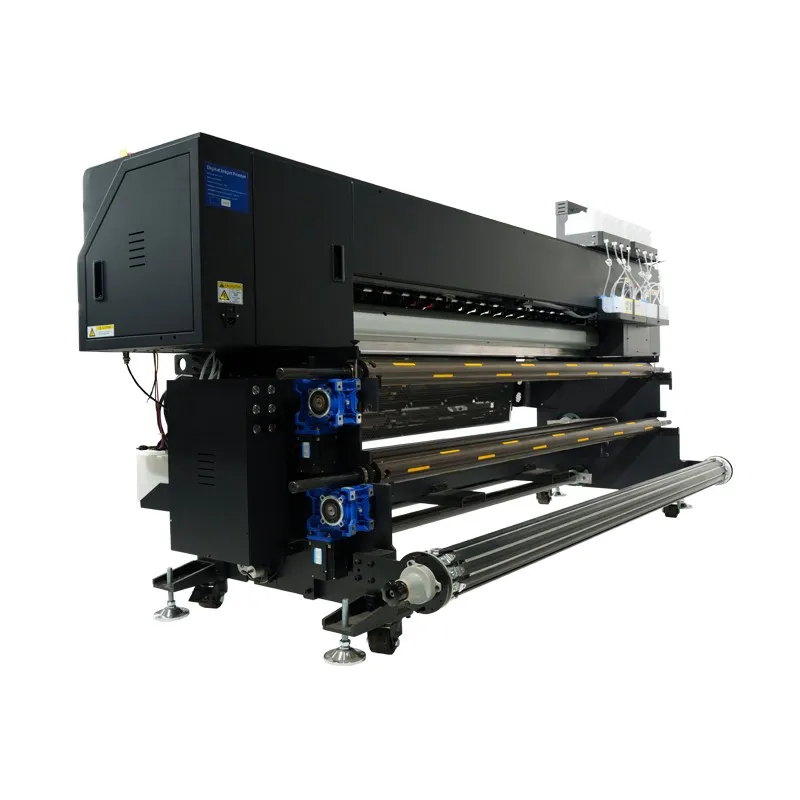

A paper box printing machine is an industrial inkjet printer designed to print graphics ,text and branding directly on to coated paper materials used for producing attractive ,informative,and functional packaging. It is also called packaging paper printing machine.
Ulin Paper box printing machine can be widely used in food ,cosmetics,electronics,and e-commerce packaging.
• Product boxes and cartons
• Paper bags and shopping bags
• Food packaging
• Cosmetic and luxury packaging
• E-commerce packaging
• Labels and sleeves
What are advantages of Ulin paper box printing machine?
1) Ulin paper box printing machine with EPSON i3200 heads -High printing precision and excellent color reproduction.
2) Paper box printing machine is inkjet printer with compact body,support small-batch ,high-precision graphic quick printing.
Typical Features

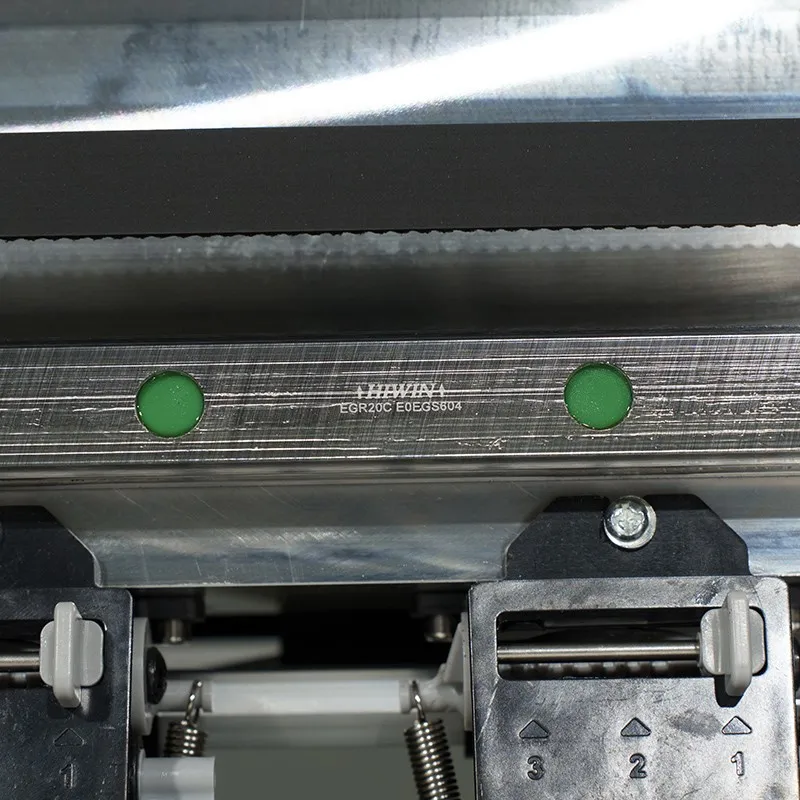

Hiwin guide rail, High precision& Accuracy, smooth&stable movement, low noise

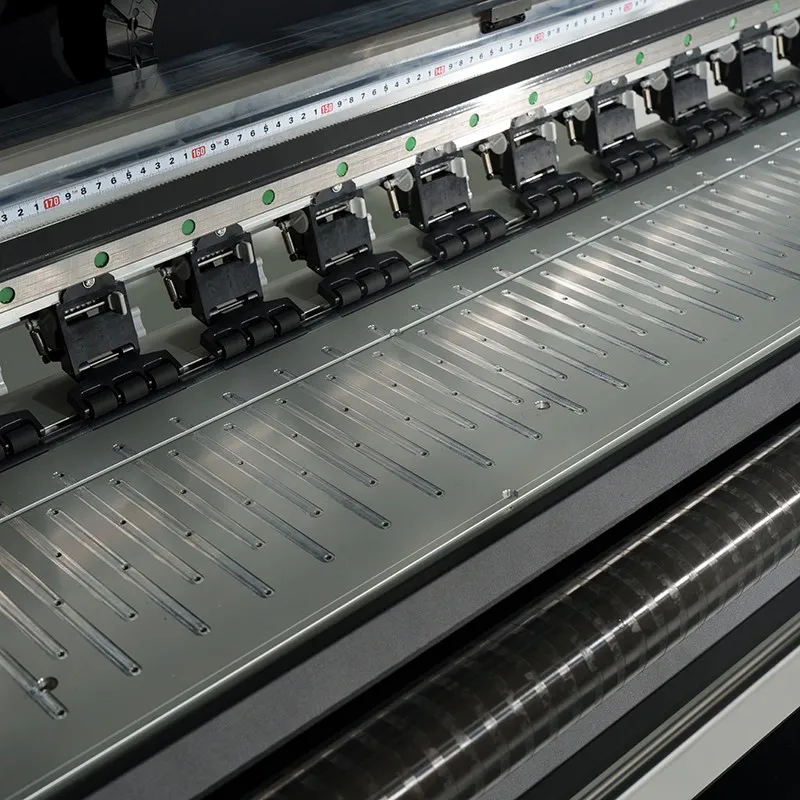

Precision milling groove printing platform,strong suction force.

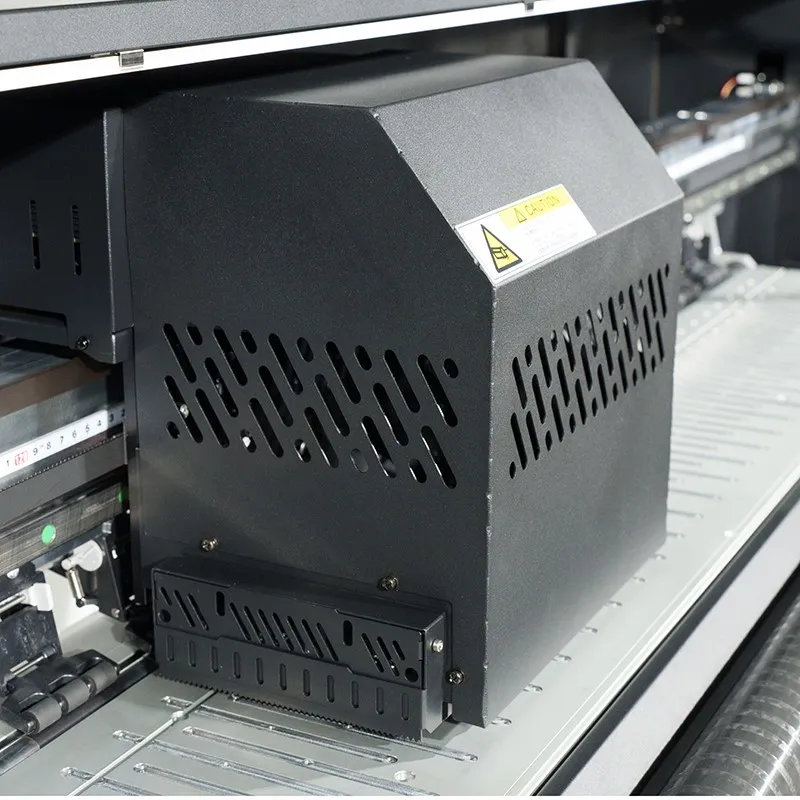

Anti-collision device ,auto stop when hit obstacles.protect the printhead from damage.

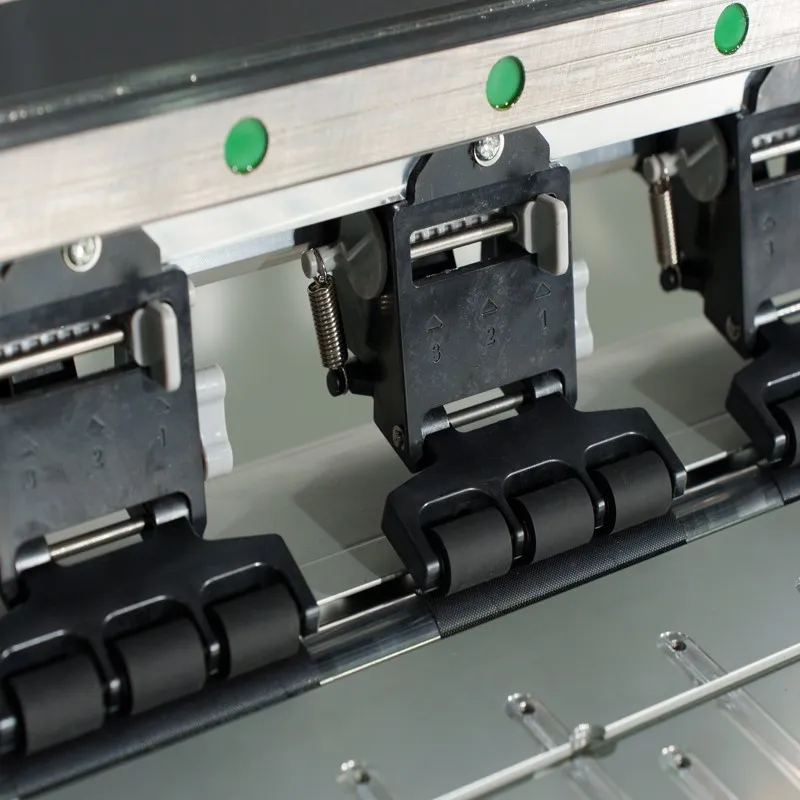

3 stage pressure adjustable pinch rollers,give uniform pressure on media.

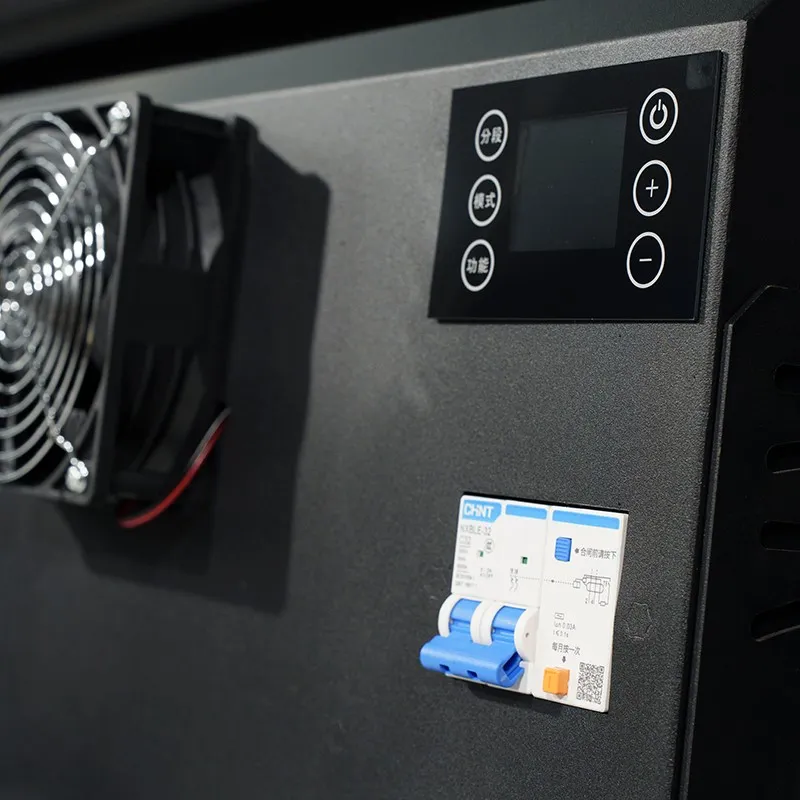

Intelligent drying system with 3-section area controllable infrared tubes and cooling fan.

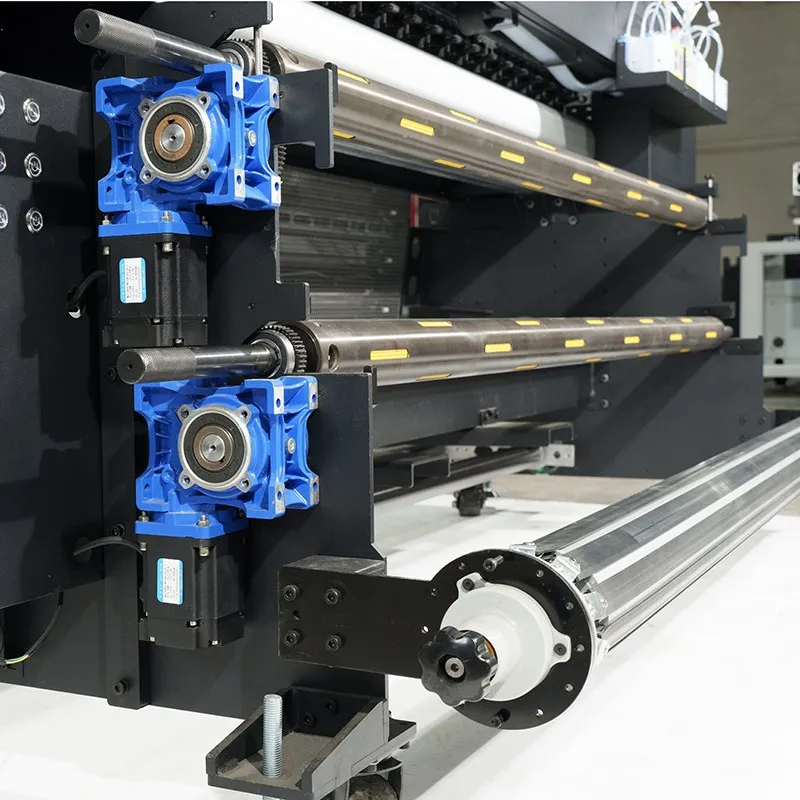

Heavy motor rewinding and unwinding with 2pcs air shaft and 1pcs Leather roller

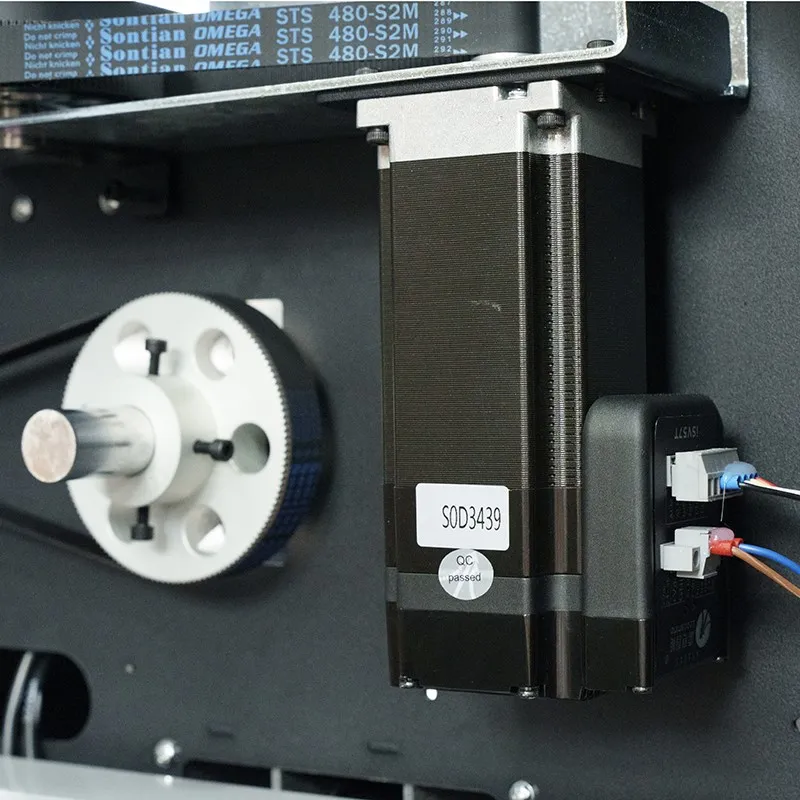

Leadshine servo motor,high precision position control , long lifespan.
Continuous ink supply system with 8color mode .with ink shortage alarm,full waste ink alarm.

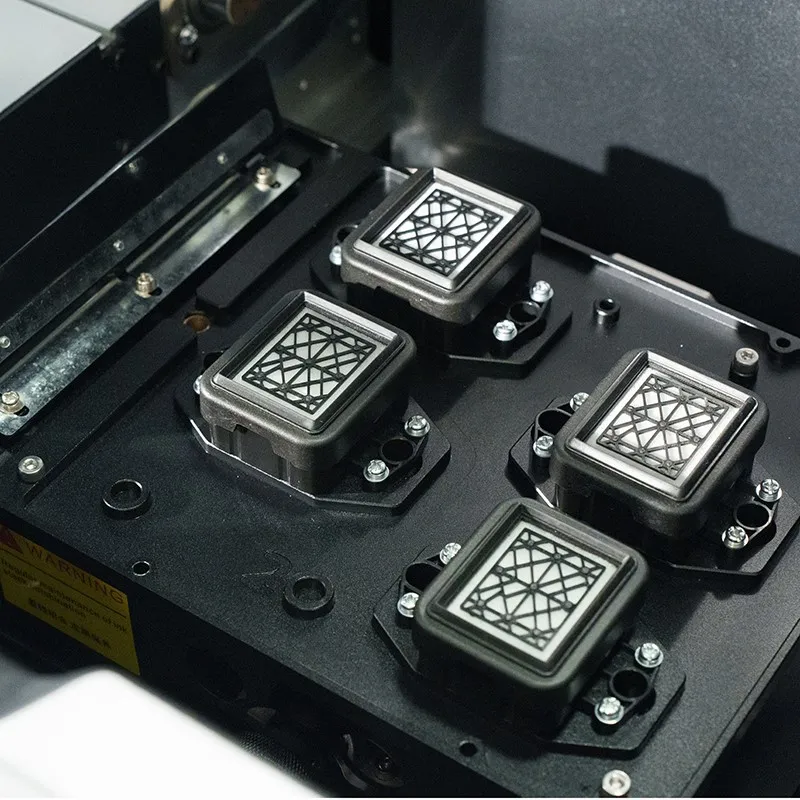

Intelligent capping system precisely control the lifting height and capping pressure,enable quick auto-cleaning and moisturizing of the printhead.
Technical Parameters
|
Model No. |
P1804 |
|
Print Head Type |
Epson i3200-A1 |
|
printing technology |
Micro-piezoelectric inkjet printing technology |
|
Printing Color |
CMYK+LC +LM +LK+ LLK(8color) |
|
Max Printing Width |
1820mm |
|
Printing Speed |
4H |
|
4pass：50m²/H |
|
|
6pass：32m²/H |
|
|
8pass：25m²/H |
|
|
Application |
Packaging box , Paper bag |
|
Media Type |
Max Width :1.82m |
|
Thickness:0~1mm |
|
|
Weight:0~40KG |
|
|
Ink system |
Pigment ink |
|
8 Color:CMYK+LC+LM+LK+LLK |
|
|
Ink cartridge Capacity：220CC Ink Tank Capacity:2L |
|
|
Feeding and Take up system |
Heavy duty feeding and take up with 2pcs air shaft and 1pcs Leather roller |
|
Drying System |
Infrared heater and fan |
|
Input file format |
JPG,PDF,TIF,BMP |
|
RIP Software |
RIIN/Maintop (Optional) |
|
Board |
Honson |
|
data transmission interface |
GigE Vision |
|
Power Input |
220V AC |
|
Power Consumption |
2KW/6KW |
|
Net Weight |
400KG |
|
Machine Size |
2870mm*1050mm*1370mm |
|
Packing Size |
2970mm*1050mm*1550mm |
|
Gross Weight |
470KG |
|
Working Environment |
Low dust, good ventilation, and avoid direct sunlight Temperature:24℃-26℃,Humidity:35%-65%RH |
