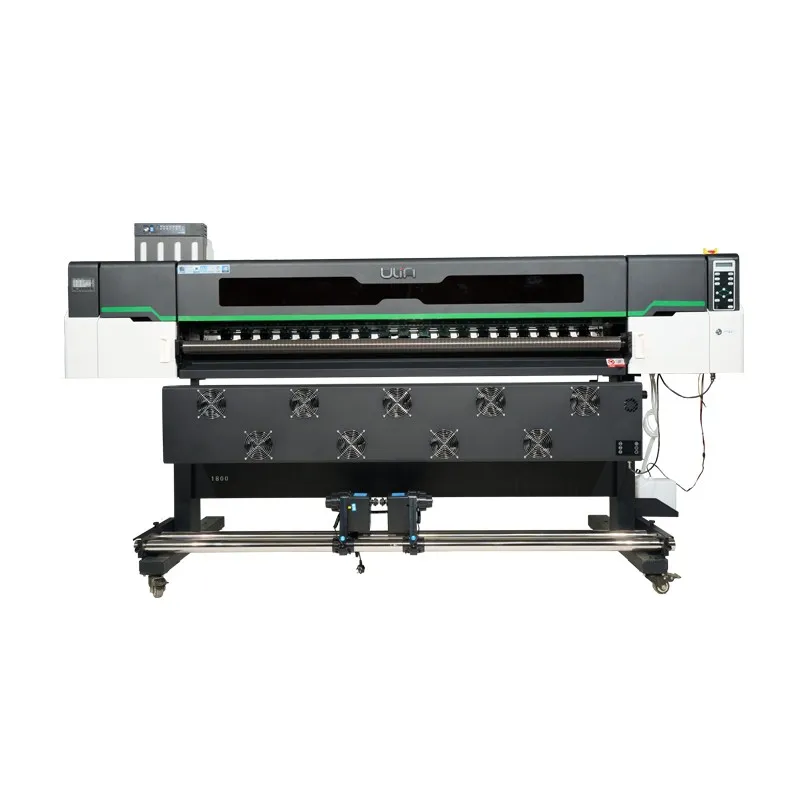

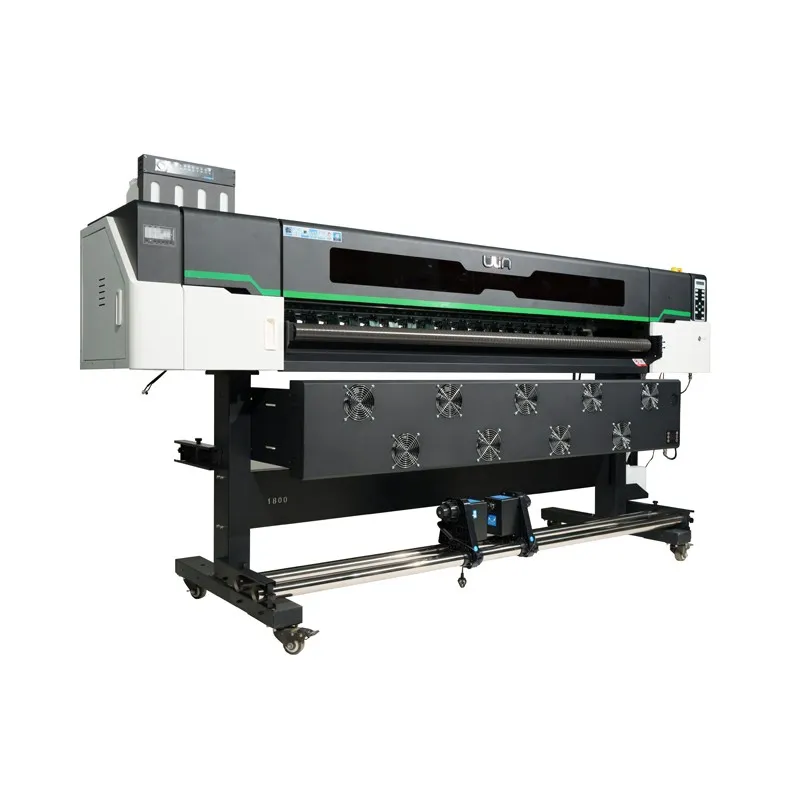

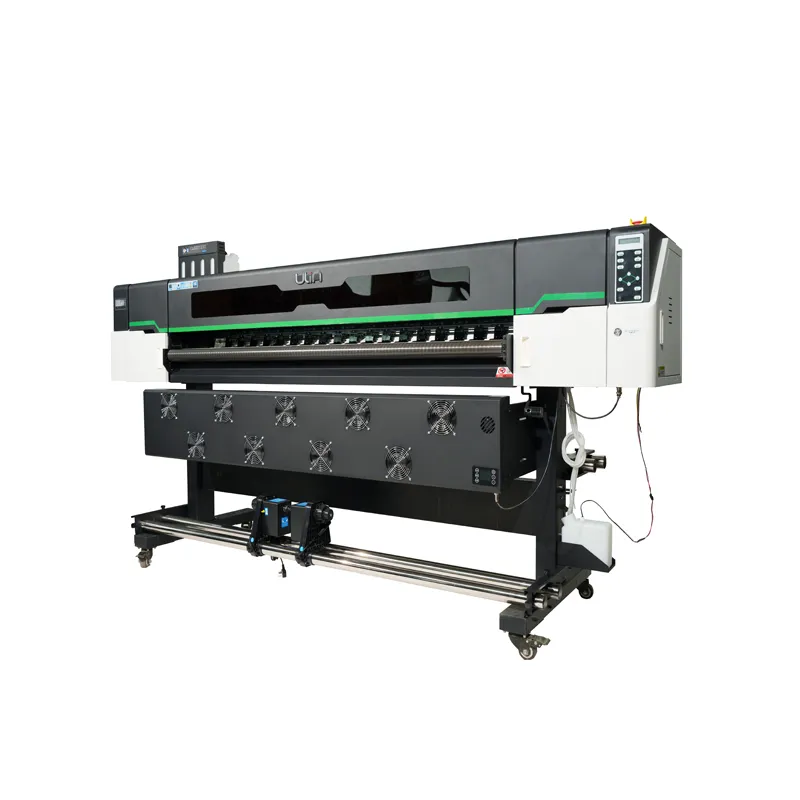

Dye Sublimation Printer
Head Type and No.: Epson i3200，4H
Printing Speed: 2pass: 120m²/H，4pass: 60m²/H，6pass: 40m²/H
Hangzhou Yulan Technology Co., Ltd. is one of the leading manufacturers and suppliers of dye sublimation printer in China, specialized in providing high quality equipment with the latest design. If you're going to wholesale the newest dye sublimation printer made in China, welcome to get more information from our factory.
Product Name :Dye Sublimation Printer
A dye sublimation printer uses heat-activated inks to create permanent, high-definition images that bond directly with polyester materials , Known for smooth color transitions and photographic quality, a dye sublimation printer produces prints that resist fading, cracking, and peeling over time. For customized products and textile decoration, a dye sublimation printer offers reliable performance and long-lasting visual impact.
Specification:
1.8m with 4pcs EPSON i3200-A1 heads and double motor take up system
What Benefits of Sublimation Printing for Customers ?
1)Long-Lasting ,High-Quality Prints
Sublimation ink becomes a part of the material(not a surface layer
So no worry about printing cracking,peeling or fading
2)Soft tough on Apparel
Sublimation Ink bonds with fabric fibers, no heavy ink feel or fabric, it is breathable and soft to wear
3)Wash-resistant and scratch-resistant
Sublimation printing color fastness can reach level 4.3.Sublimation high temperature seals the ink inside the substrate ,Creates long-term durability.so sublimation is scratch resistant.
What products can me make with Ulin Sublimation Printer ?
1.moisture-wicking sportswear garments-Workout wear, leggings, sports shorts, and compression wear
2.Custom Apparel-sports jerseys, fashion t-shirts, hoodies,sari
3. Personalized & promotion Gifts-Mugs, pillow case,toys,mouse pad,lanyards, tote bags,umbrella
4. Home Textiles-polyester-based fabrics
Ulin Sublimation Printer Typical Features

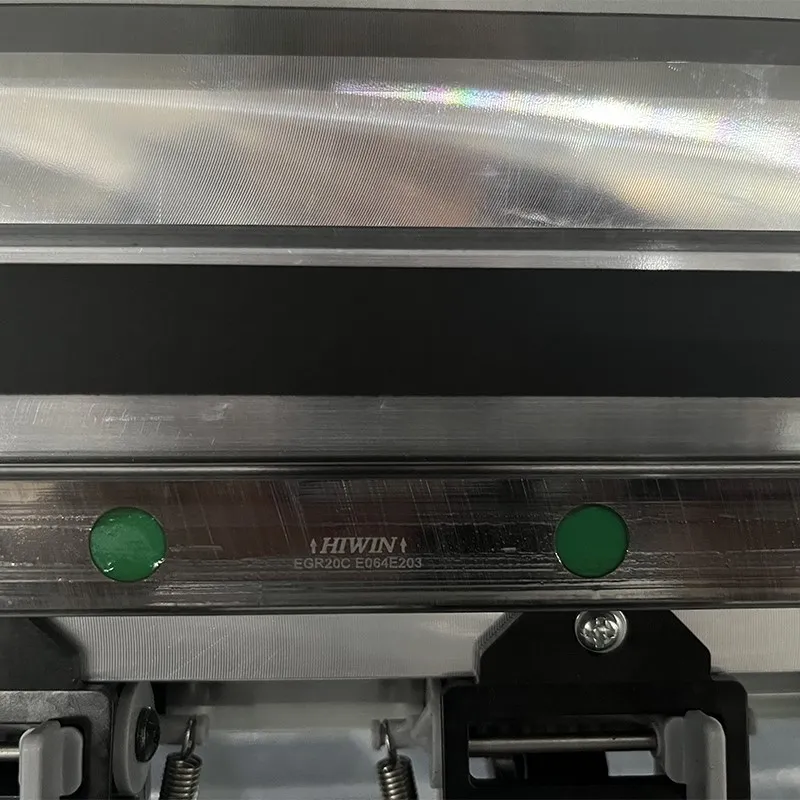

Hiwin guide rail, high precision&Accuracy, Smooth&Low-friction motion.
Guide through air suction platform with enhanced suction power ensure smooth paper feeding without bulging.

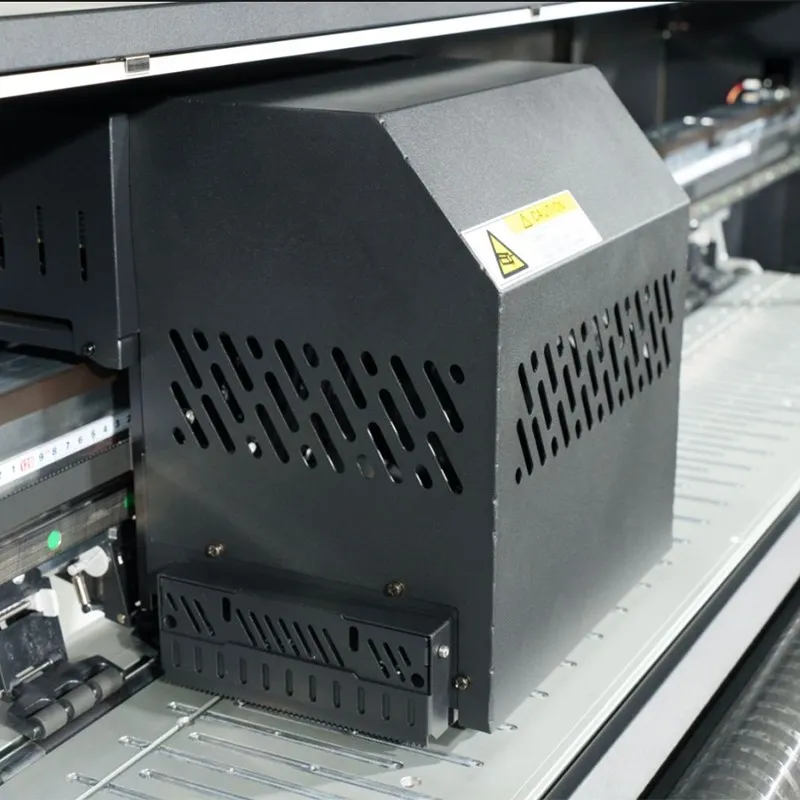

Anti-collision device ,auto stop when hit obstacles,protect head from scratch
Pressure can be adjusted according to material characteristic,ensure the overall pressure is uniform.

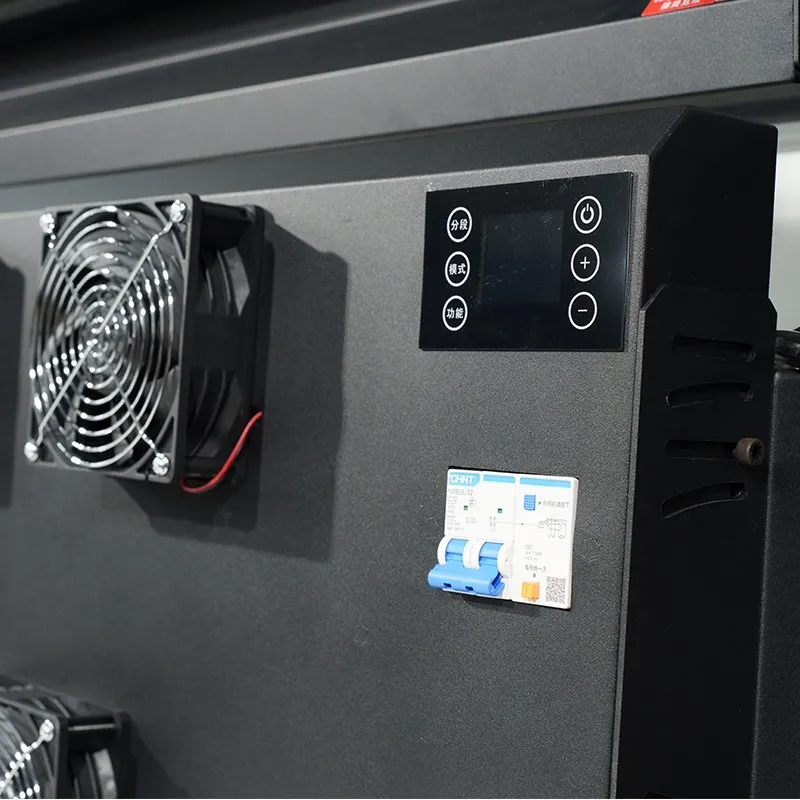

3-section infrared heater,each section can be controlled separately ,use on demands, save energy.

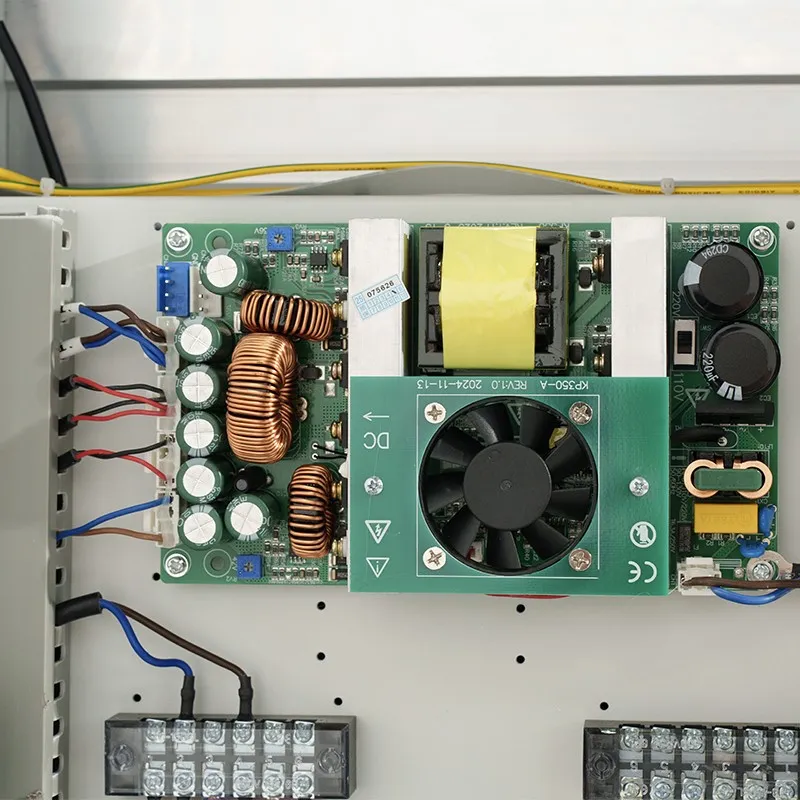

Integrated power supply, strong anti-interference performance, stable voltage and current output.

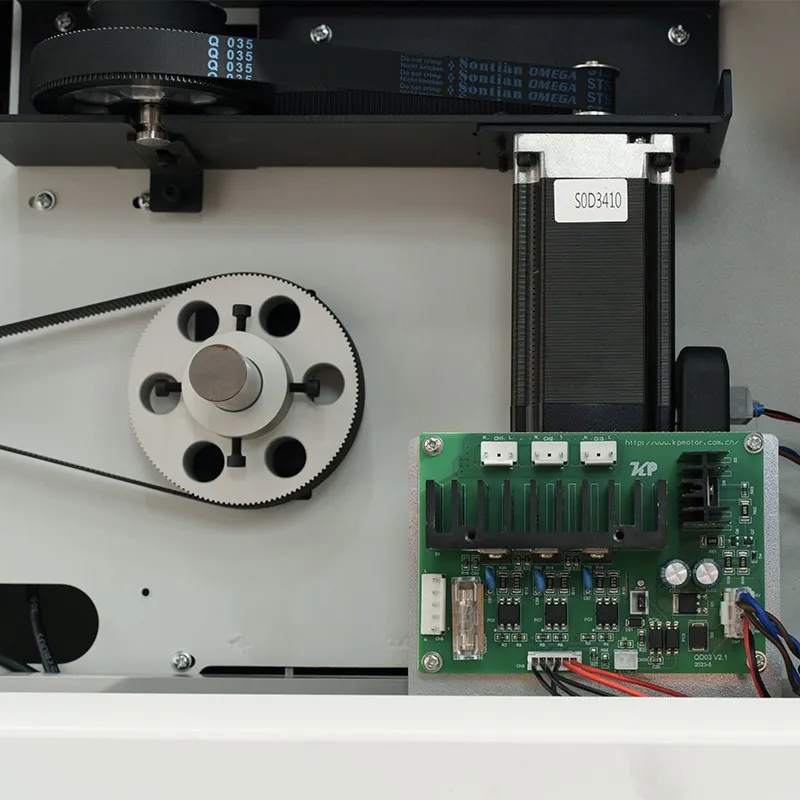

Leadshine servo motor,high precision,fast response,stable operation,low noise ,long service life.

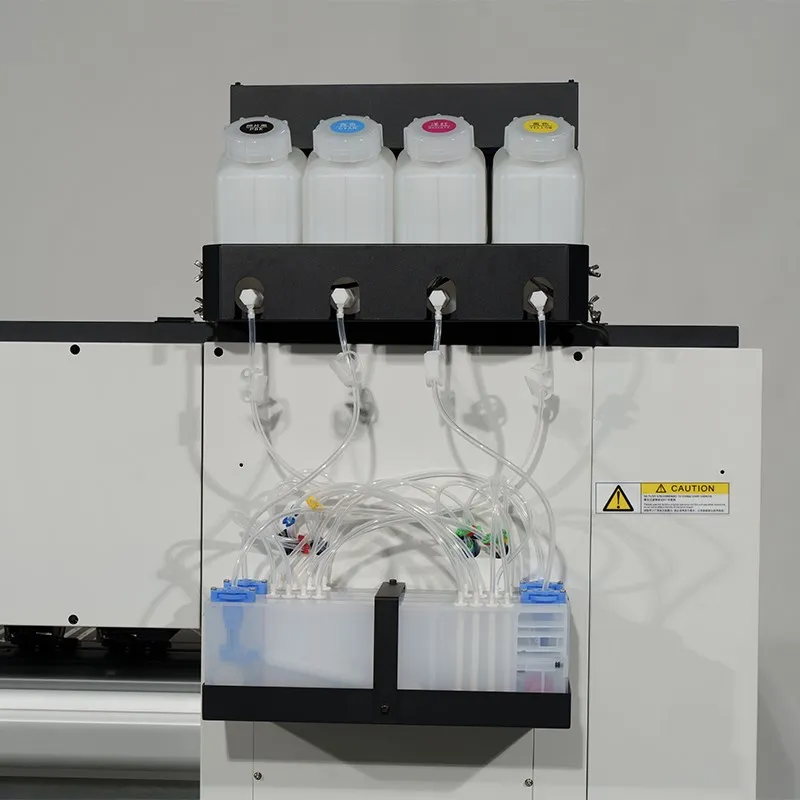

Intelligent ink supply system with ink shortage alarm , full waste ink alarm.

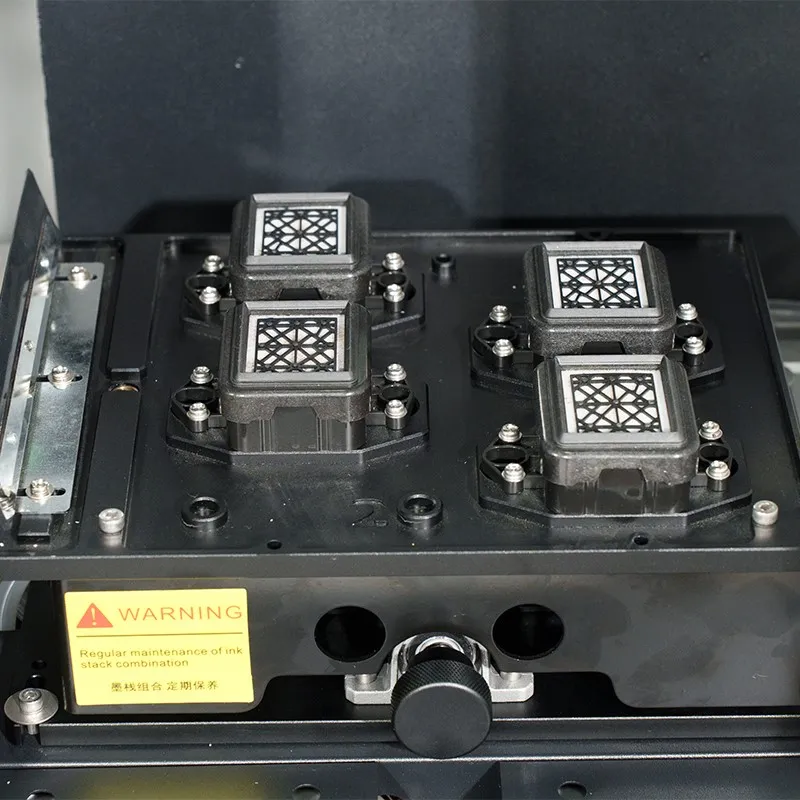

Intelligent capping system precisely control the lifting height and capping pressure,enable quick auto-cleaning and moisturizing of the printhead.
Technical Parameters
|
Model No. |
LX1804 |
|
Head Type |
Epson i3200 |
|
Head No. |
4H |
|
Printing Technology |
Micro-piezoelectric inkjet printing technology |
|
Printing Color |
CMYK/LC LM LK LLK(FM FY ORGB) |
|
Max Printing Width |
1800mm |
|
Printing Speed |
2pass：120m²/H |
|
4pass：60m²/H |
|
|
6pass：40m²/H |
|
|
Application |
Sublimation Paper |
|
Media Type |
Max Width:1.82m |
|
Thickness:0~1mm |
|
|
Weight:0~40KG |
|
|
Ink Supply System |
Ink type:Sublimation ink |
|
color：CMYK |
|
|
Ink cartridge capacity：220CC Ink tank capacity:2L |
|
|
Rewinding System |
Standard double motor take up system |
|
Drying System |
Infrared heater+cooling fan |
|
File Format |
JPG,PDF,TIF,BMP |
|
RIP Software |
RIIN/Neostampa (optional) |
|
Board Type |
Honson |
|
Data Transfer Interface |
Gigabit Ethernet port |
|
Power Input |
220V AC |
|
Power Consumption |
2KW/4KW |
|
Net Weight |
400KG |
|
Machine Size |
2870mm*810mm*1370mm |
|
Packing Size |
2970mm*770mm*880mm |
|
Gross Weight |
285KG |
|
Working Environment |
Low dust, good ventilation, and avoid direct sunlight Temperature:24℃-26℃,Humidity:35%-65%RH |
