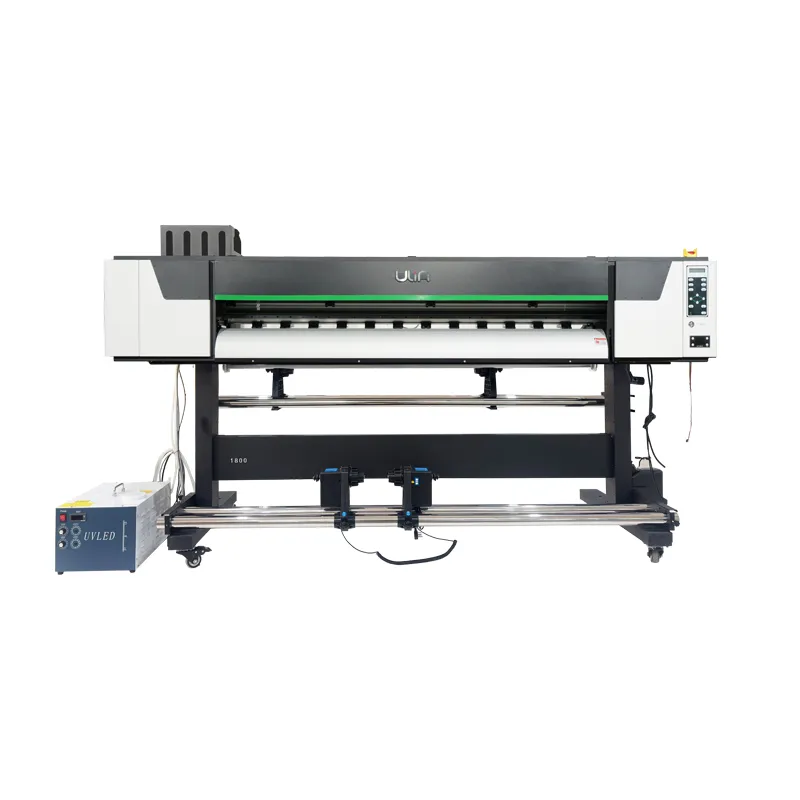

Roll To Roll UV Printer

Roll To Roll UV Printer

Model No.: JY1801/JY1802
Head Type and No.: EPSON i3200-U1/XP600 (optional),1H/2H
Printing Speed: i3200-U1 6pass-4㎡/H,8pass-3㎡/H(1H)
Send Inquiry
Product Introduction

Hangzhou Yulan Technology Co., Ltd. is one of the leading manufacturers and suppliers of roll to roll uv printer in China, specialized in providing high quality equipment with the latest design. If you're going to wholesale the newest roll to roll uv printer made in China, welcome to get more information from our factory.



Product Name:Roll to Roll UV Printer



1) Ulin brand UV Roll to Roll Printer support Optional EPSON printheads , XP600(DX11)/EPSON i320-U1
deliver precise droplet placement and high resolution,resulting in crisp,detailed images and smooth gradients-important for signage,graphics,and branding materials.
2) UV LED Curing Technology-Instant dry prints,UV inks cure immediately under LED lamps
3) Roll to Roll UV Printer support White ink & Vanish effects-White ink support for printing on dark or clear media.Optional clear vanish layers for gloss effects.
4) UV Roll to Roll Printer Compatible with a variety of flexible substrates,including vinyl/banner/mesh/backlit film/canvas


UV roll to roll printer application



Typical Features

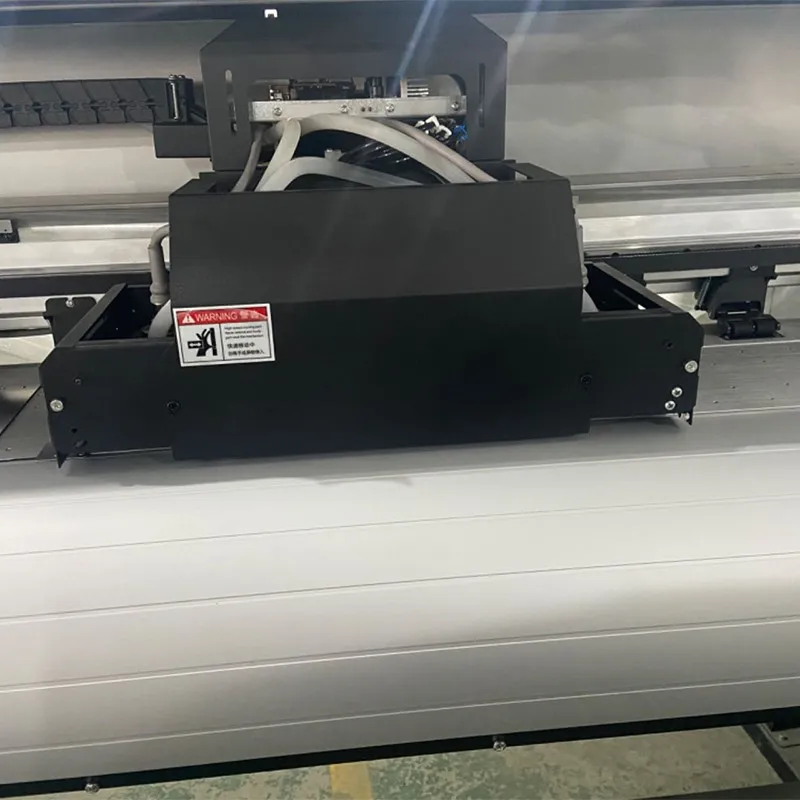

20240311101600

2pcs UV 12020 lamp,.instant curing &fast production,high energy efficiency.

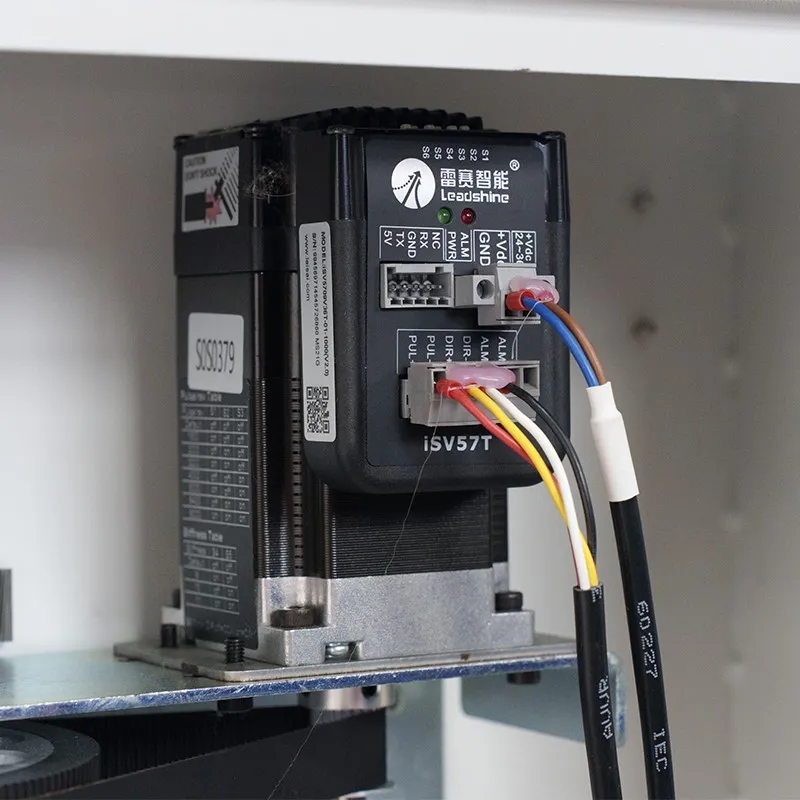

Servo motor

Leadshine servo motor ,High control accuracy, stable operation and long service life.


EYS3452

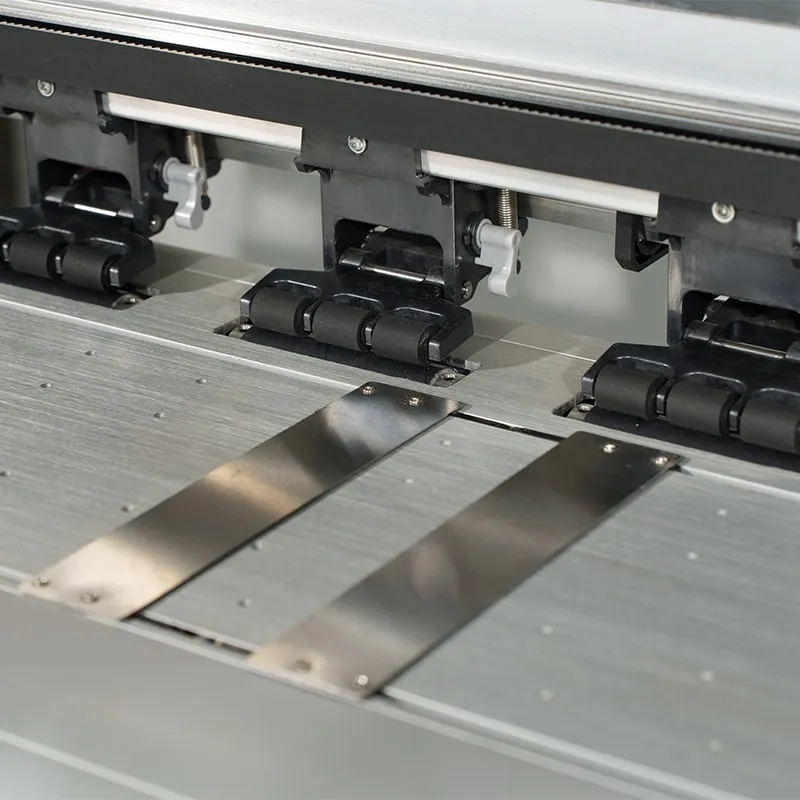

Three-stage adjustable paper-pressing rollers allow pressure adjustment according to material properties,ensuring uniform overall pressure for precise paper feeding without creasing or bulging

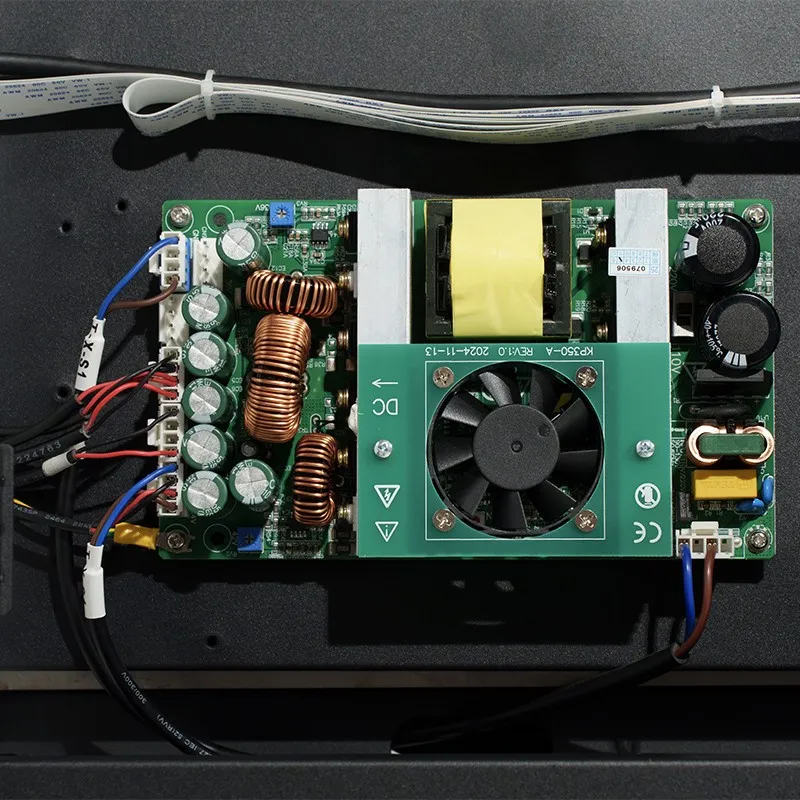

Integrated power supply

Integrated power supply ,strong anti-interference performance,stable voltage and current output ,and low failure rate



Filter switch, reduce electromagnetic interference, stabilize voltage and current output, and lower the damage to electrical components caused by voltage and current fluctuations



Technical Parameters (Roll to Roll UV Printer )



Model No.:

JY1801/JY1802

Head Type:

EPSON i3200-U1/XP600 (optional)

Head No.:

1H/2H

Printing Speed:

i3200-U1 6pass-4㎡/H,8pass-3㎡/H(1H)

XP600 6pass-3㎡/H,8pass:2㎡/(1H)

Max Printing Width:

1.8m

Printing Color:

CMYK/W+CMYK/CMYK+Vanish

Media Type:

Flex banner/car sticker/PVC film/PU/Canvas/Tarpaulin/Sticker

Ink Type:

UV ink

RIP Software:

Maintop/Flexi(optional)
