Banner Printer
Head Type and No.: EpsonXP600，2H
Printing Speed: 4pass: 24²/H,6pass: 16m²/H,8pass: 12m²/H
Hangzhou Yulan Technology Co., Ltd. is one of the leading manufacturers and suppliers of banner printer in China, specialized in providing high quality equipment with the latest design. If you're going to wholesale the newest banner printer made in China, welcome to get more information from our factory.
Product Name
Banner Printer -also call Eco solvent printer
EPSON XP600 head Eco Solvent printer-ideal for clients with small investment budget and strict cost controls.
XP600 head Max Resolution 2880dpi -3.5pl.
Banner printer (Eco Solvent Printer) is a large-format inkjet printer that use eco-solvent inks to produce durable,high -quality prints for indoor and outdoor applications .Ulin brand banner printer (Eco solvent printer) can print bright pictures that can resist sunlight, rain, and time erosion on many materials such as vinyl, flex banner,photo paper,backlit film ,mesh, canvas, etc.
the Banner printer(eco solvent printer)is ideal for print shops seeking high-quality results with environmentally friendlier operation.
Typical Features

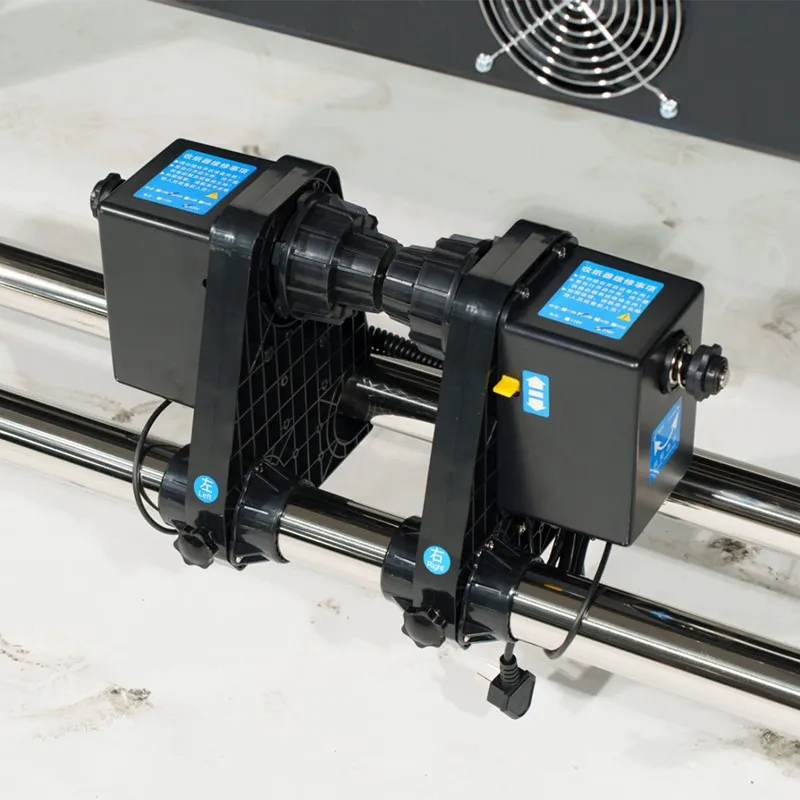

Double motor rewinding system, ensure smooth and efficient media collection.

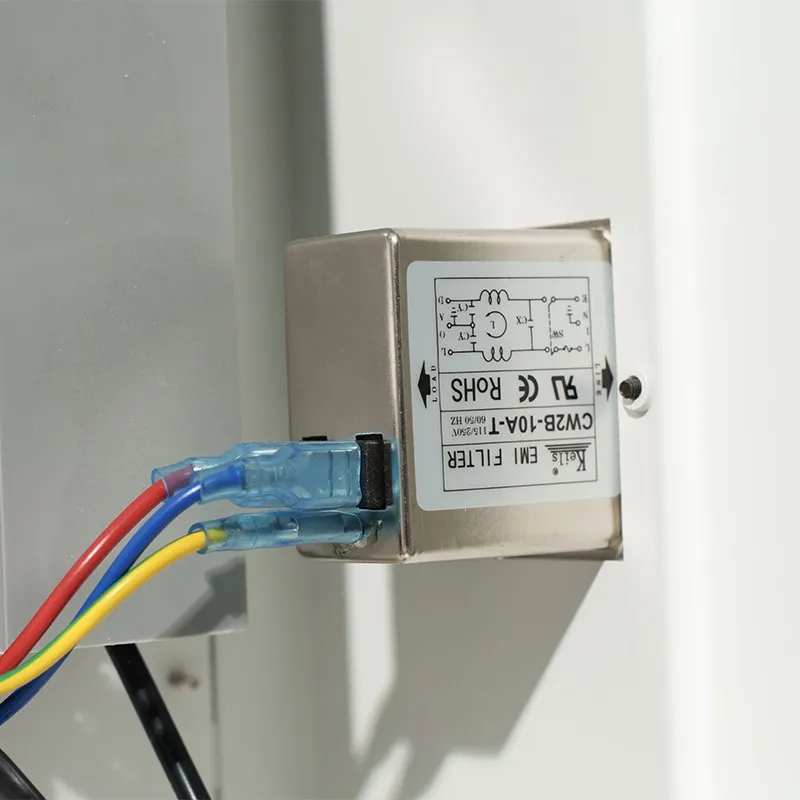

Filter switches ,reduce electromagnetic interference, stabilize voltage and current output.lower the damage to electrical components caused by voltage and current fluctuations

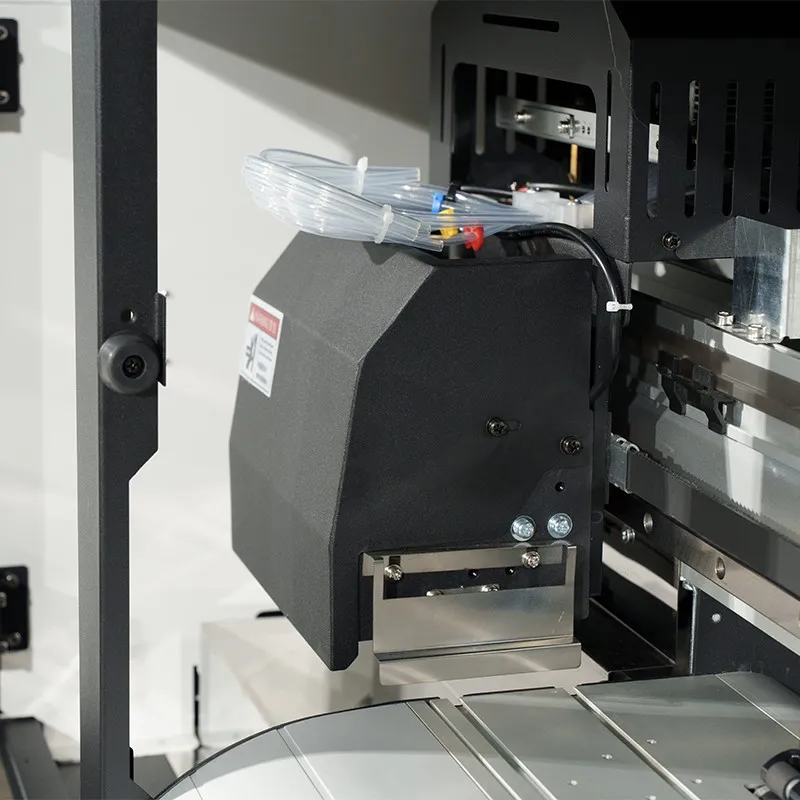

Anti-collision device , printhead carriage will auto stop when hit obstacles ,protect the printhead from scratch.

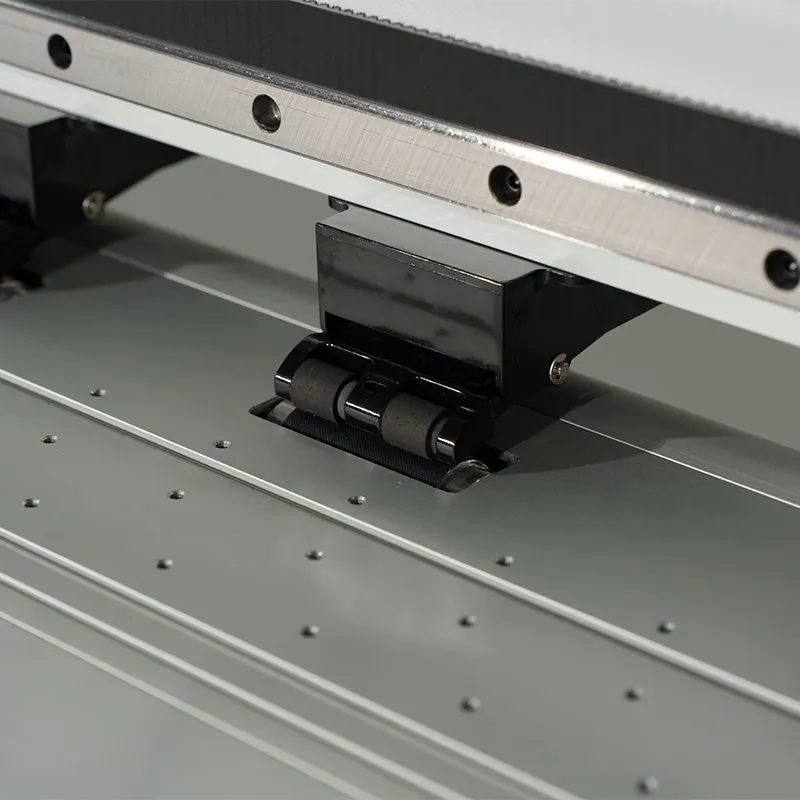

Printing platform front and back heating system,Fix the ink droplets in time to prevent bleeding and spreading.

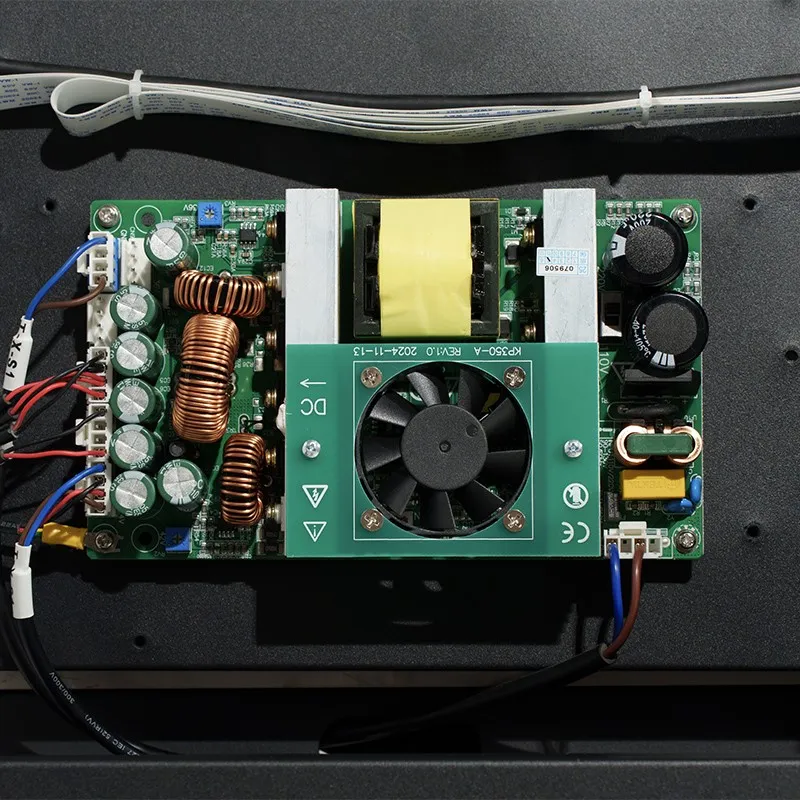

Integrated power supply- strong anti-interference, stable voltage and current output.
Technical Parameters
|
Model No |
JY1602/JY1802 |
|
Head Type |
EpsonXP600 |
|
Head No. |
2H |
|
Printing Technology |
Micro-piezoelectric inkjet printing technology |
|
Printing Color |
CMYK |
|
Max printing width |
1600mm/1800mm(optional) |
|
Printing Speed |
XP600-2H |
|
4pass：24²/H |
|
|
6pass：16m²/H |
|
|
8pass：12m²/H |
|
|
Printing material |
car stickers/ light box fabric/ grid fabric/ one-way vision/wallpaper/ photo paper, /PP/Tarpaulin/Flex banner |
|
Printing Media |
Max Width:1.8/1.6m(optional) |
|
Thickness:0~1mm |
|
|
Weight:0~40KG |
|
|
Heating System |
Front and back heater |
|
Ink Supply System |
Ink Type：Eco Solvent ink/Water based ink |
|
Color：CMYK |
|
|
Ink cartridge capacity:220CC,Ink tank capacity:2L |
|
|
Take Up System |
Double motor take up |
|
Drying System |
Quartz lamp tube, cold air fan, UV lamp curing (optional) |
|
File Format |
JPG,PDF,TIF,BMP |
|
RIP Software |
Maintop/RIIN/Flexi(Optional) |
|
Board |
Sunyung |
|
Data transfer interface |
GigE Vision |
|
Power Input |
220V AC |
|
Power Consumption |
2KW |
|
Net weight |
180KG |
|
Machine Size |
1.6m:2670mm*810mm*1370mm 1.8m:2870mm*810mm*1370mm |
|
Packing Size |
2930mm*720mm*740mm |
|
Gross Weight |
220KG |
|
Working Environment |
Low dust, good ventilation, and avoid direct sunlight Temperature:24℃-26℃,Humidity:35%-65%RH |
