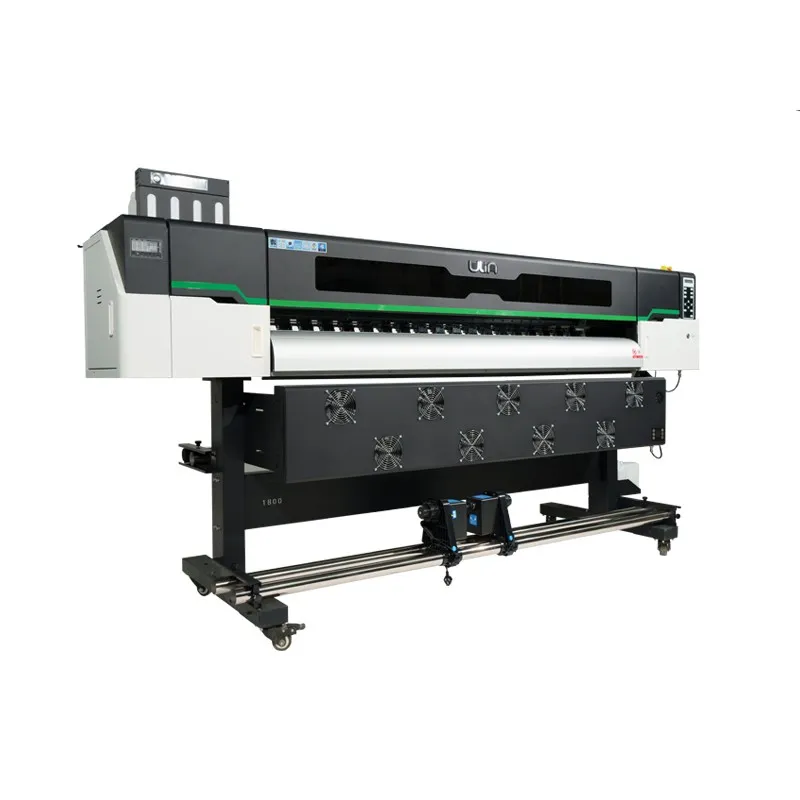

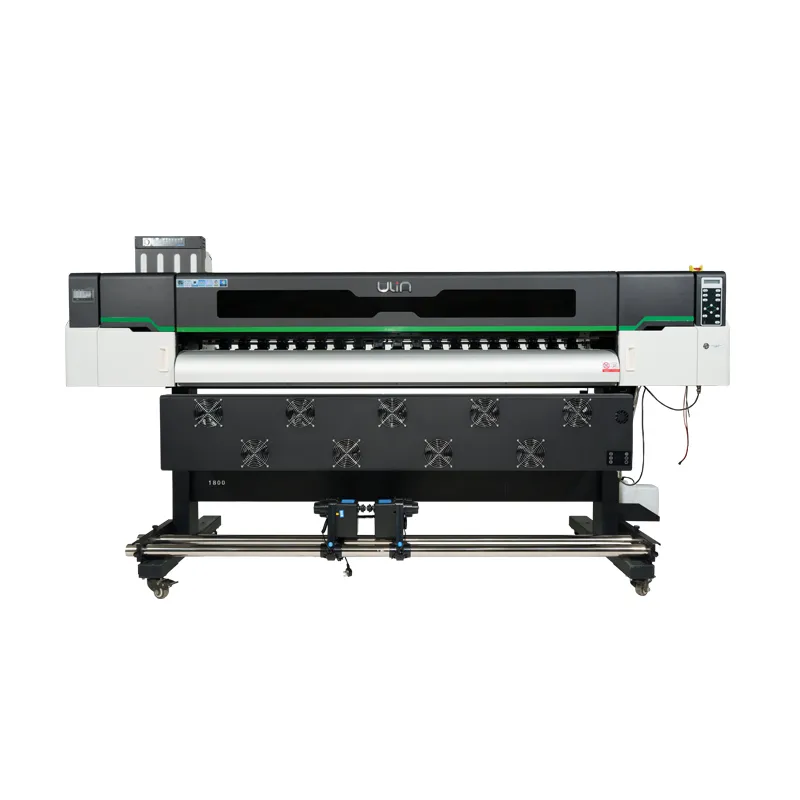

I3200 Eco Solvent Printer
Head Type and No.: Epson i3200，2H
Printing Speed: 4pass: 30m²/H，6pass: 20m²/H，8pass: 10m²/H
Hangzhou Yulan Technology Co., Ltd. is one of the leading manufacturers and suppliers of i3200 eco solvent printer in China, specialized in providing high quality equipment with the latest design. If you're going to wholesale the newest i3200 eco solvent printer made in China, welcome to get more information from our factory.
Product Name:i3200 Eco Solvent Printer
An i3200 eco solvent printer is designed for high-precision digital printing, offering sharp images and smooth color gradients for indoor and outdoor graphics. With advanced printhead technology and stable ink delivery, an i3200 eco solvent printer provides reliable performance on vinyl, banners, and stickers. Overall, an i3200 eco solvent printer is a cost-effective solution for signage businesses seeking durability and consistent print quality.
What are features of Ulin Eco Solvent Printers?
1) High resolution output-with Original EPSON heads i3200,,can produce sharp text and smooth gradients,vivid,long-lasting colors
2) Wide-format printing capability-Ulin brand Eco solvent printers are available in large width(1.6m/1.8m/3.2m) ,ideal for banners ,wallpapers and signage
3) Strong ink adhesion&Durability, Water-resistant/Scratch-resistant
4) Excellent media compatibility-Support a wide range of materials:PVC vinyl/Flex banner/Stickers&Decals/Photo paper/Backlit film/Canvas
Typical Features

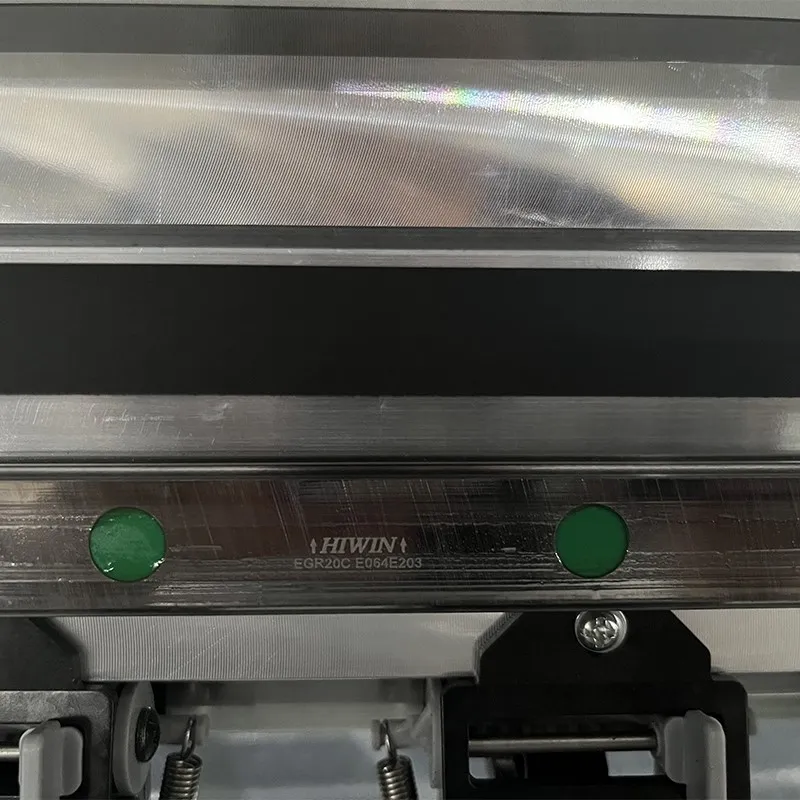

Hiwin mute guide rail, high precision&Accuracy, Smooth&Low-friction motion.

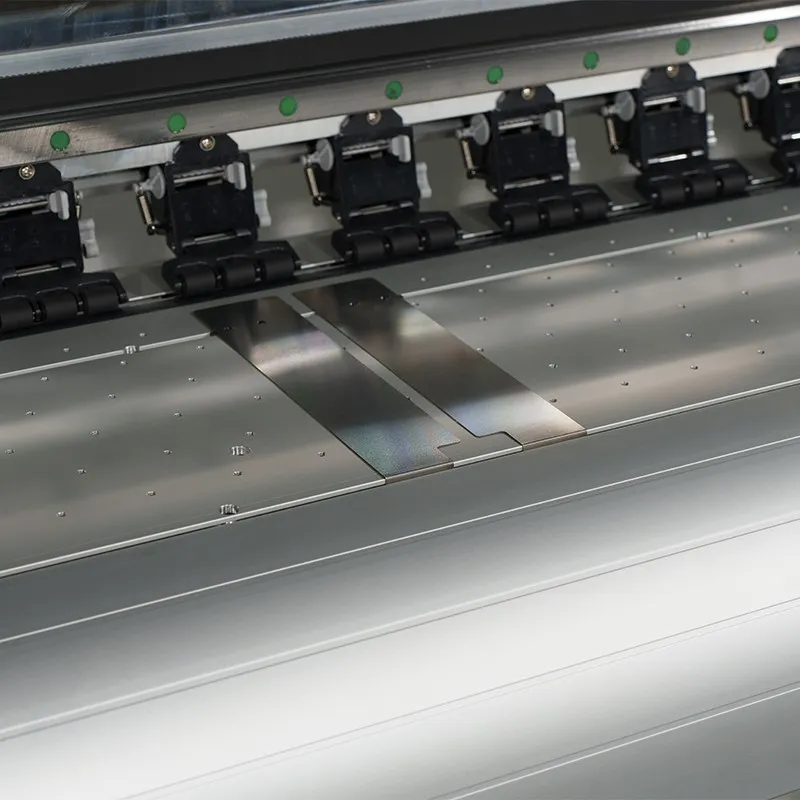

Printing platform front, middle and back heating system, enables instant ink droplets setting, prevents bleeding and spreading, and enhance ink adhesion to the media surface.

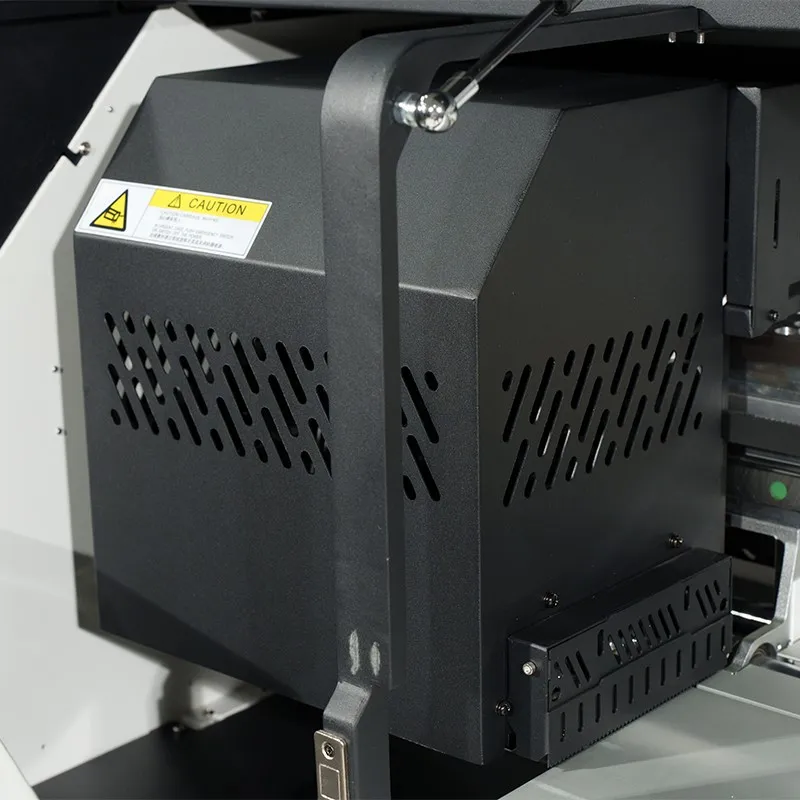

Anti-collision device, printhead carriage will auto stop when hit obstacles, protect the printhead from scratch.

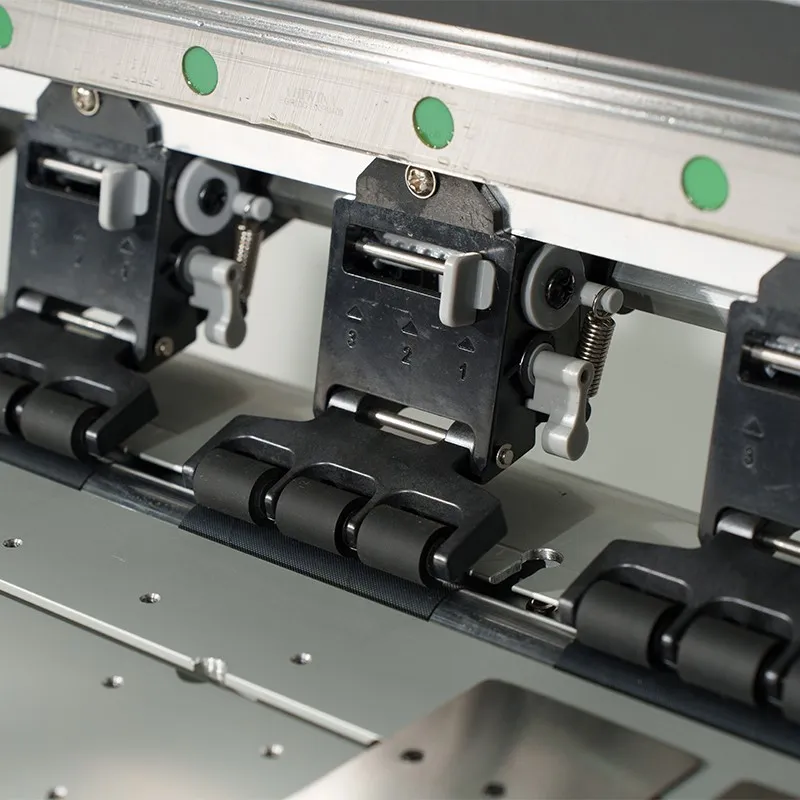

Three-stage adjustable paper-pressing rollers allow pressure adjustment according to material properties, ensuring uniform overall pressure for precise paper feeding without creasing or bulging

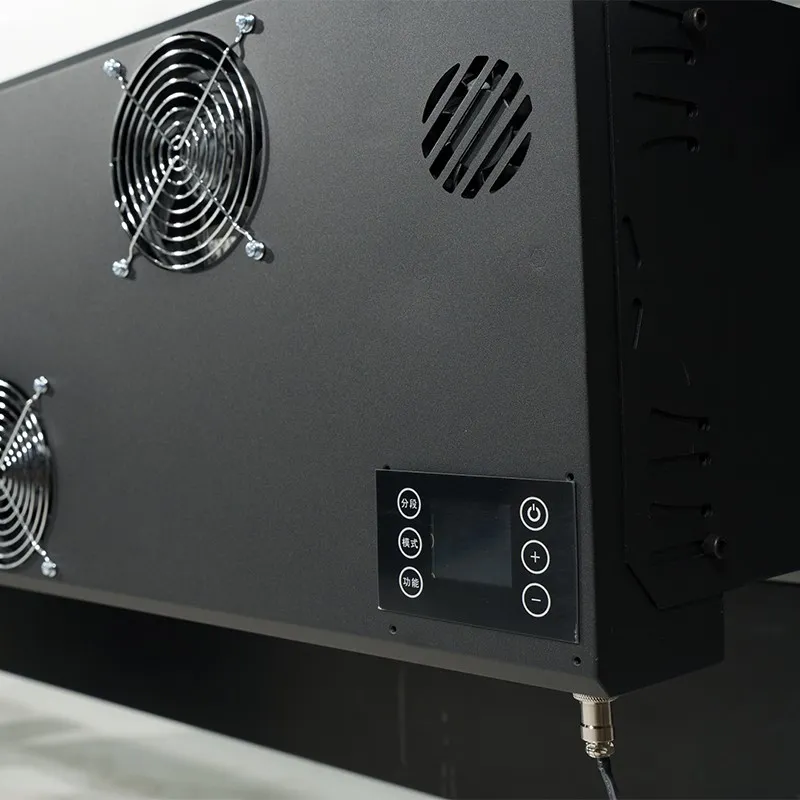

Three-stage adjustable infrared lamp tubes enable zoned, adjustable and controllable operation, ensuring efficient drying while reducing energy.

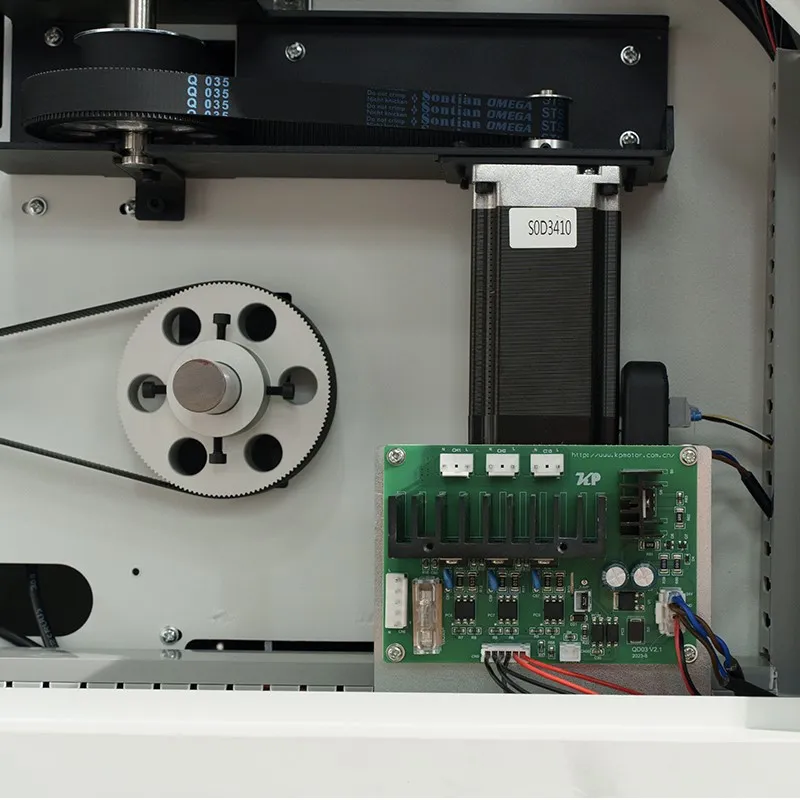

Leadshine servo motor, High precision, fast response, stable operation, low noice, long service life.

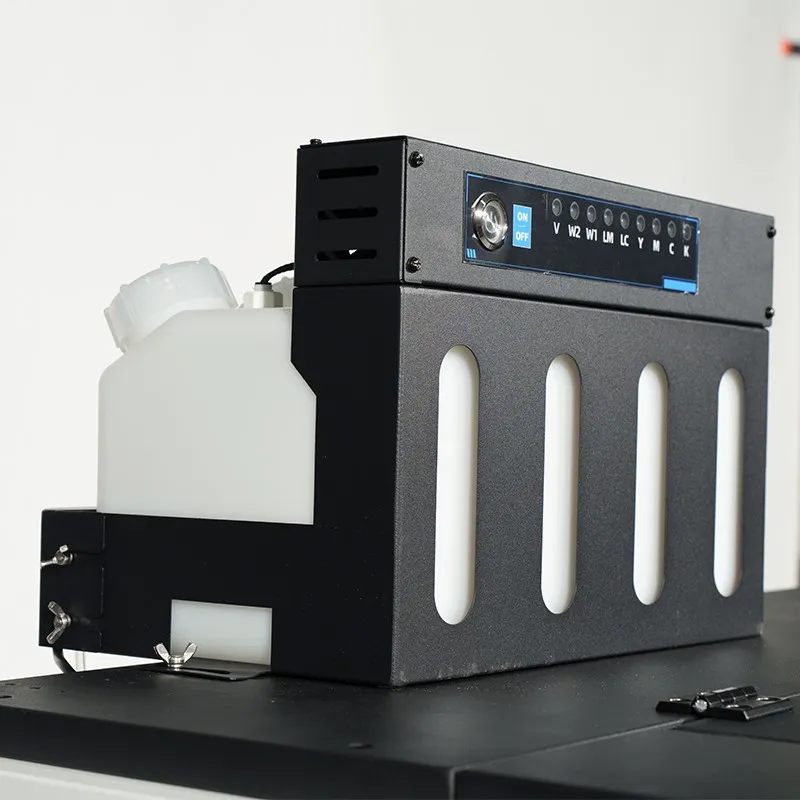

CISS with ink shortage alarm and full waste ink alarm, enables uninterrupted ink delivery, ensuring non-stop printing without ink breakage or nozzle clogging.

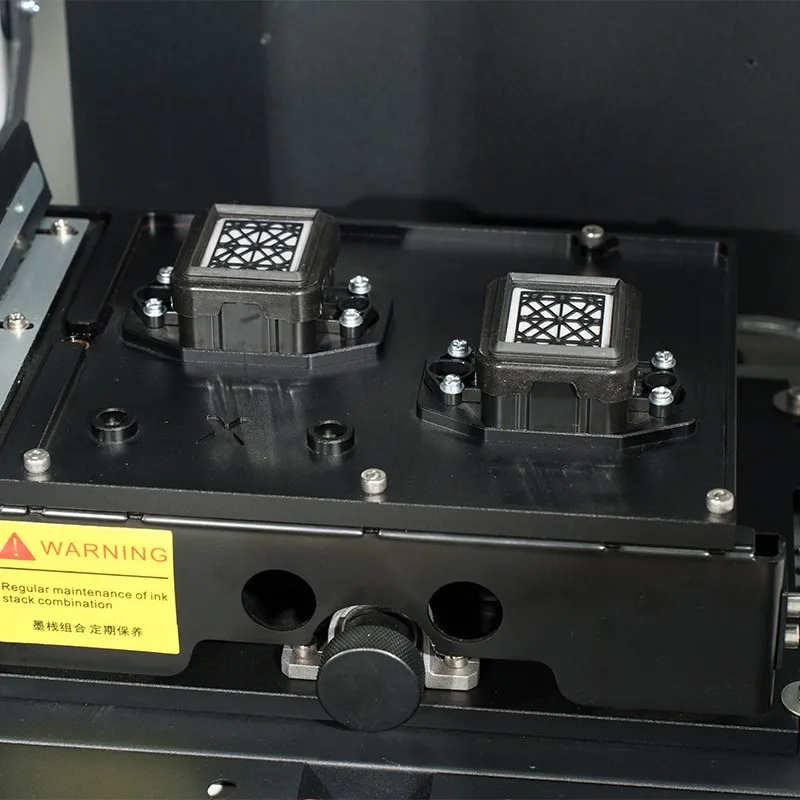

Intelligent capping system precisely control the lifting height and capping pressure, enable quick auto-cleaning and moisturizing of the printhead.
Technical Parameters
|
Model No. |
LX1802 |
|
Head Type |
Epson i3200 |
|
Head No. |
2H |
|
Printing technology |
Micro-piezoelectric inkjet printing technology |
|
Printing Color |
CMYK |
|
Max Printing Width |
1800mm |
|
Printing Speed |
4pass：30m²/H |
|
6pass：20m²/H |
|
|
8pass：10m²/H |
|
|
Application |
Flex banner/Tarpaulin/One-way vision/Photo paper/Wall paper etc. |
|
Media |
Max Width:1.82m |
|
Thickness:0~1mm |
|
|
Weight:0~40KG |
|
|
Ink Supply System |
Eco solvent ink/water based ink |
|
Color:CMYK |
|
|
Ink cartridge capacity:220CC, Ink tank capacity:2L |
|
|
Take Up System |
Double motor take up system |
|
Drying System |
Infrared heater+Cooling fan |
|
File Format |
JPG,PDF,TIF,BMP |
|
RIP Software |
RIIN/Maintop/Flexi(Optional) |
|
Board Type |
Honson |
|
Data Transfer Interface |
GigE Vision |
|
Power Input |
220V AC |
|
Power Consumption |
2KW/4KW |
|
Net Weight |
180KG |
|
Machine Size |
2870mm*810mm*1370mm |
|
Packing Size |
2970mm*770mm*880mm |
|
Gross Weight |
285KG |
|
Working Environment |
Low dust, good ventilation, and avoid direct sunlight Temperature:24℃-26℃,Humidity:35%-65%RH |
