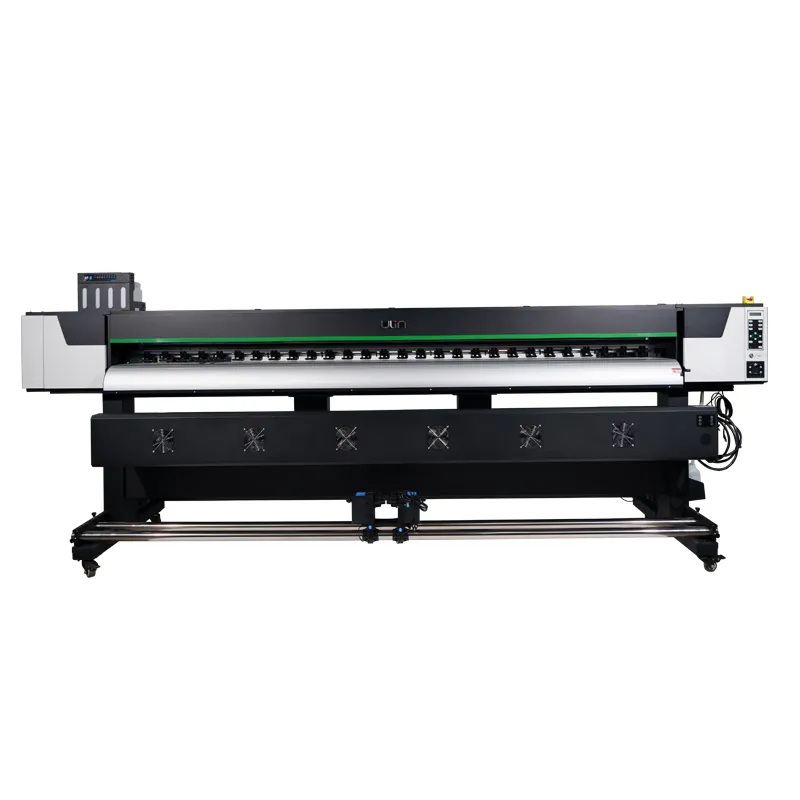

Large Format Eco Solvent Printer
Head Type and Head No.: Epson i3200/XP600/i1600（optional），2H
Printing Speed: 4pass: 24m²/H,6pass: 16m²/H,8pass: 12m²/H
Hangzhou Yulan Technology Co., Ltd. is one of the leading manufacturers and suppliers of large format eco solvent printer in China, specialized in providing high quality equipment with the latest design. If you're going to wholesale the newest large format eco solvent printer made in China, welcome to get more information from our factory.
Product Name
Large format Eco Solvent Printer
A large format Eco Solvent Printer is ideal for producing wide graphics with vibrant colors and strong outdoor durability. Designed for long-term operation, a large format Eco Solvent Printer supports various media such as vinyl, wallpaper, and banner materials. For advertising and signage production, a large format Eco Solvent Printer delivers stable performance, high efficiency, and professional output quality.
What printhead we use for eco solvent printer?
Ulin use Original EPSON Head / i3200-E1&XP600(DX11)

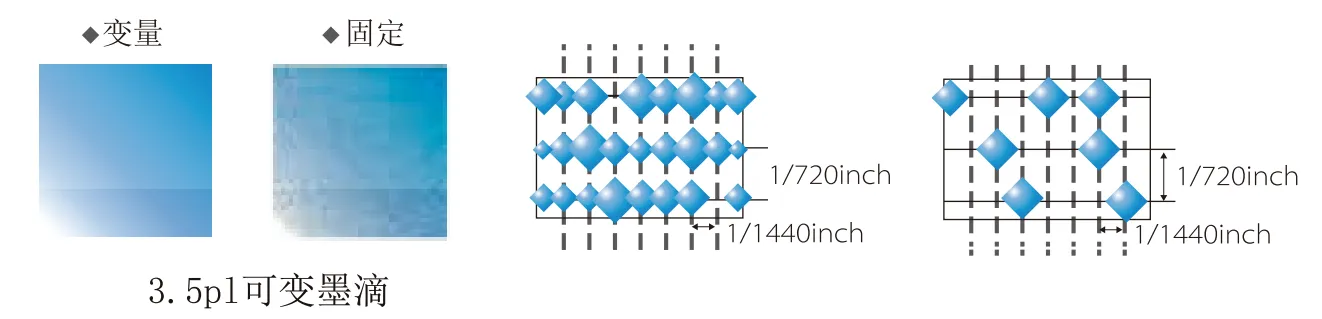

EPSON i3200 head - ideal for high quality printing needs, PrecisionCore technology, support variable drops 2.5 ~ 6 pl
EPSON XP600 head -ideal for clients with small investment budget and strict cost controls.
Max Resolution 2880dpi -3.5pl.
Typical Features

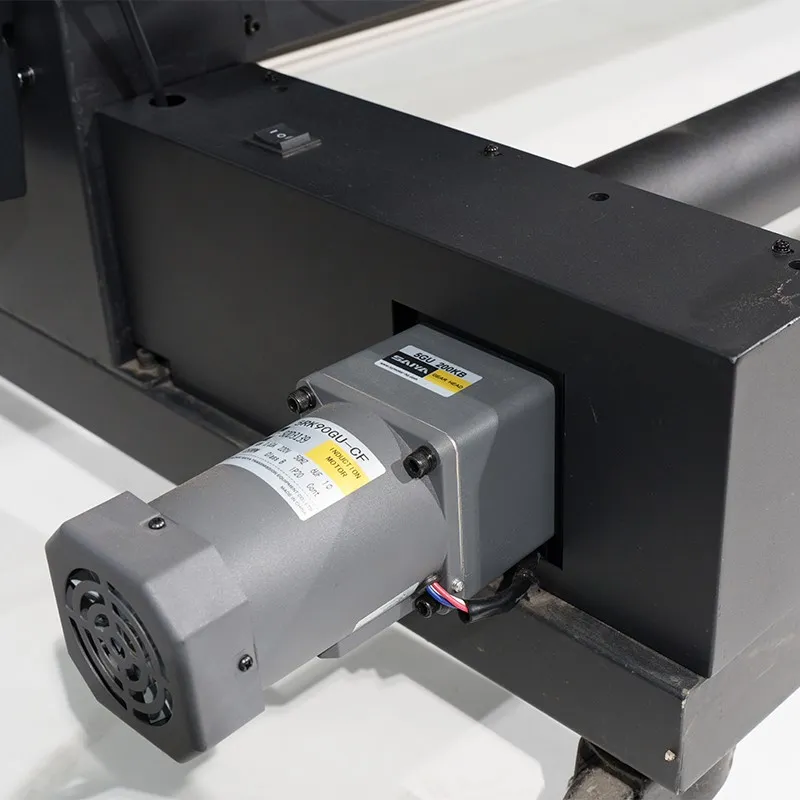

Heavy-duty motors and double rubber rollers are suitable for various large rolls of materials. The photoelectric induction probe precisely controls the material's retraction and release, ensuring no warping or deviation

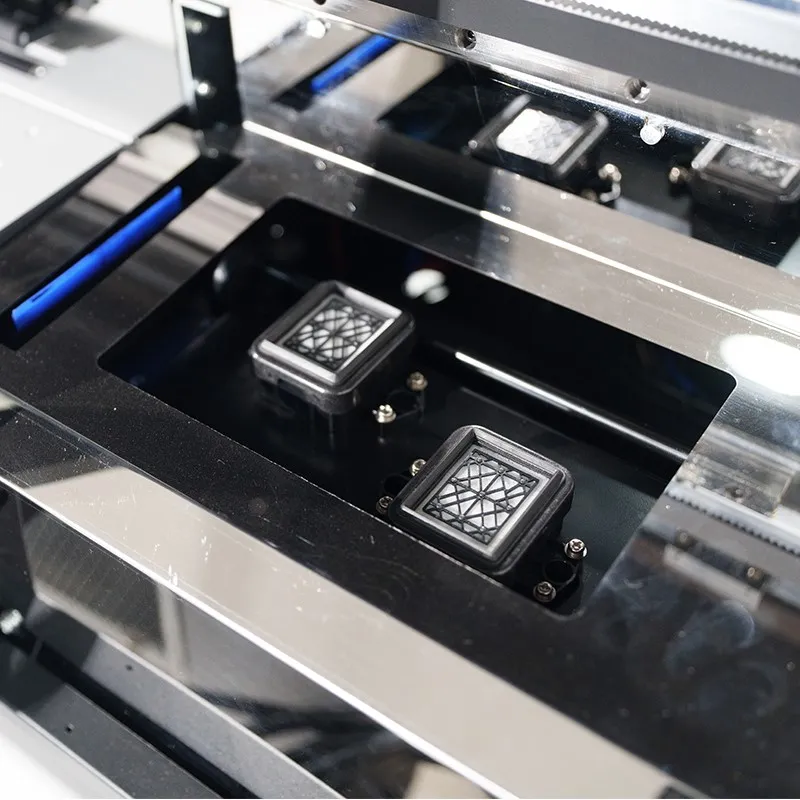

Auto capping system ,precisely control the lifting height and capping force,enable quick auto-cleaning and moisturizing of the printhead.

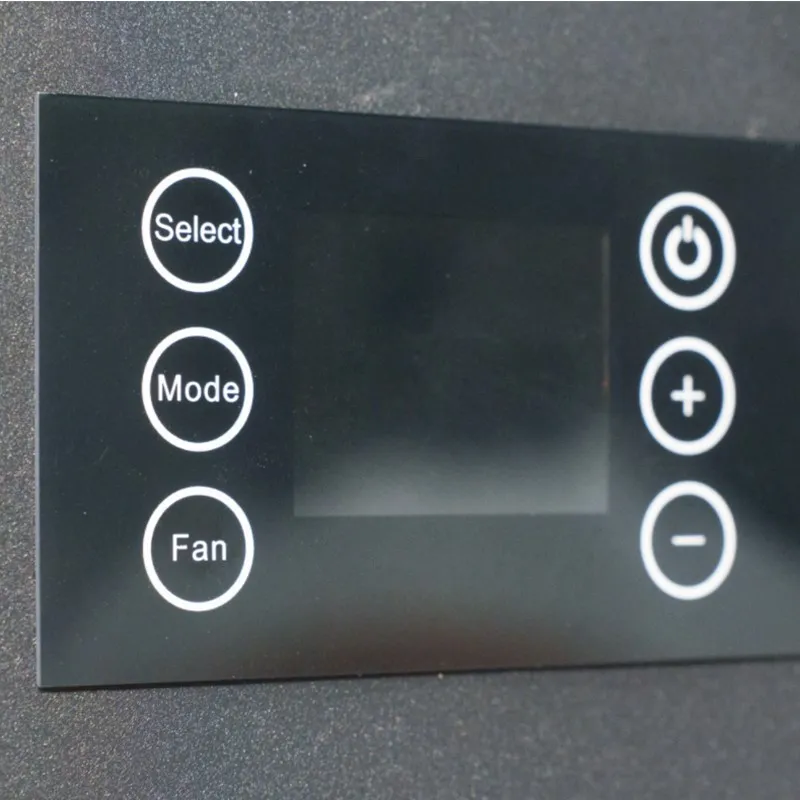

Intelligent drying, equipped with three-segment infrared lamps, can achieve zonal controllable and adjustable, ensuring drying while reducing energy consumption

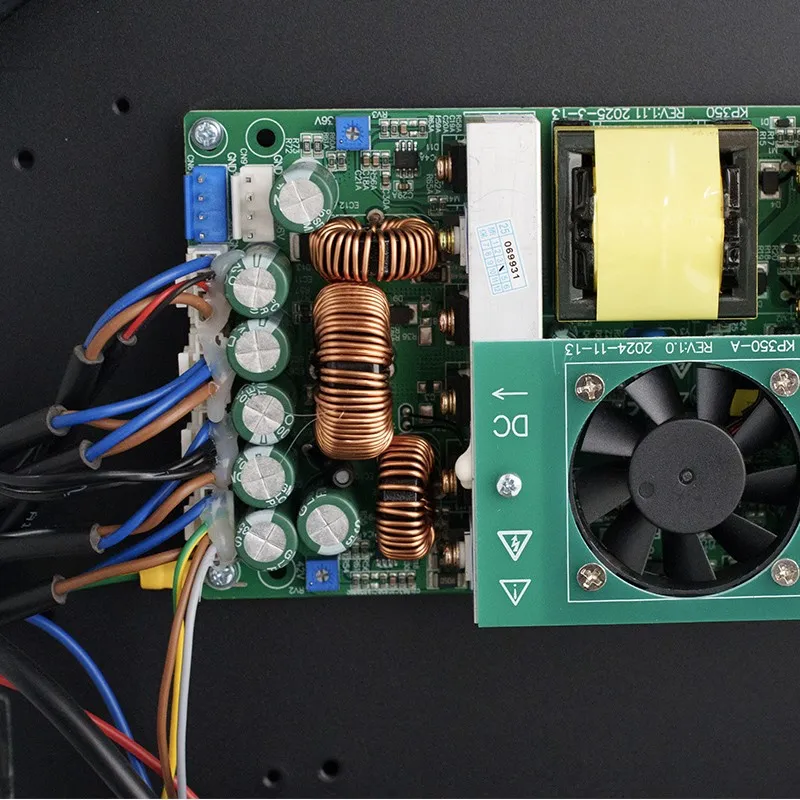

Integrated power supply, with strong anti-interference performance, stable voltage and current output, and low failure rate

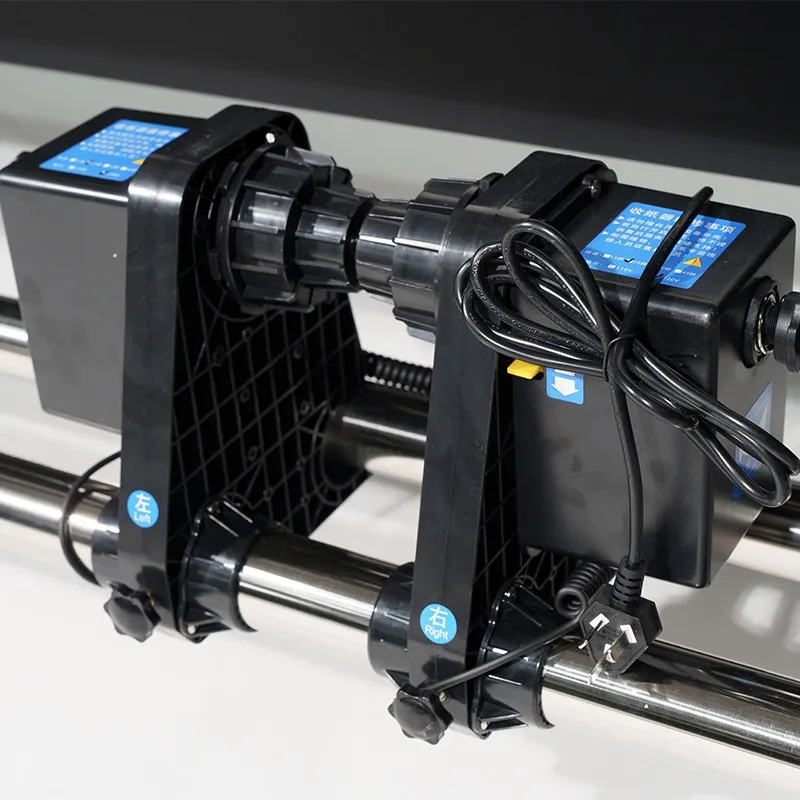

Dual- motors make rewinding more stable and efficient, and can avoid situations such as loose and uneven winding

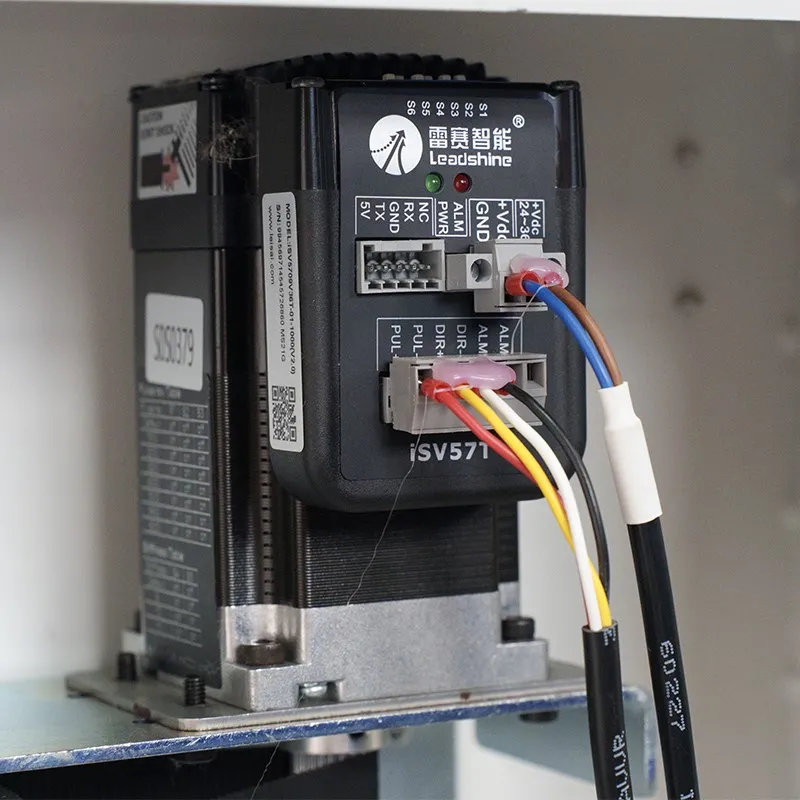

High-quality Leadshine servo motors feature high control accuracy and stable, reliable operation

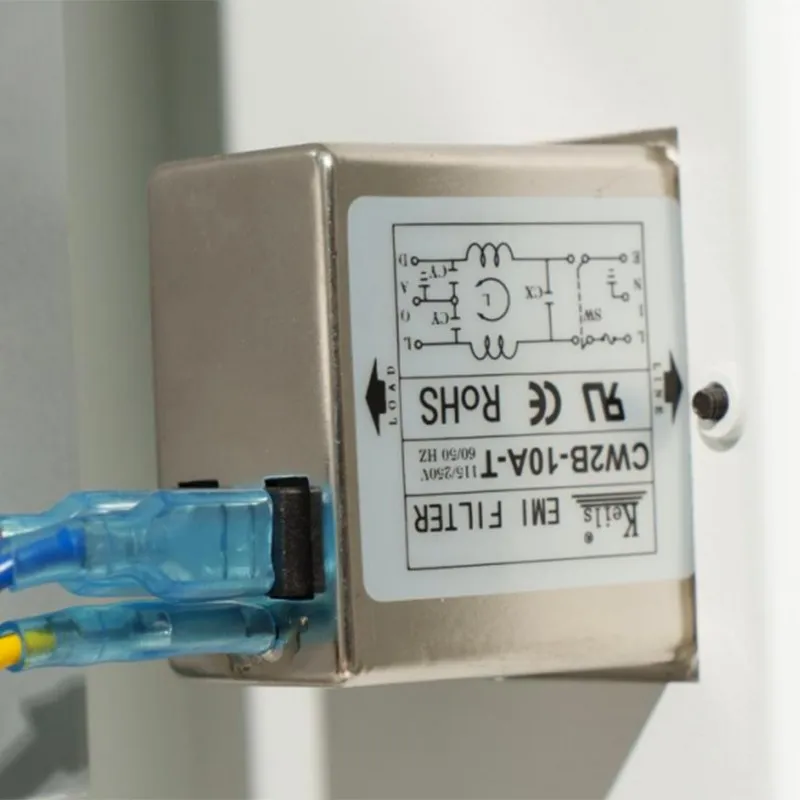

Filter switches reduce electromagnetic interference, stabilize voltage and current output, and lower the damage to electrical components caused by voltage and current fluctuations.

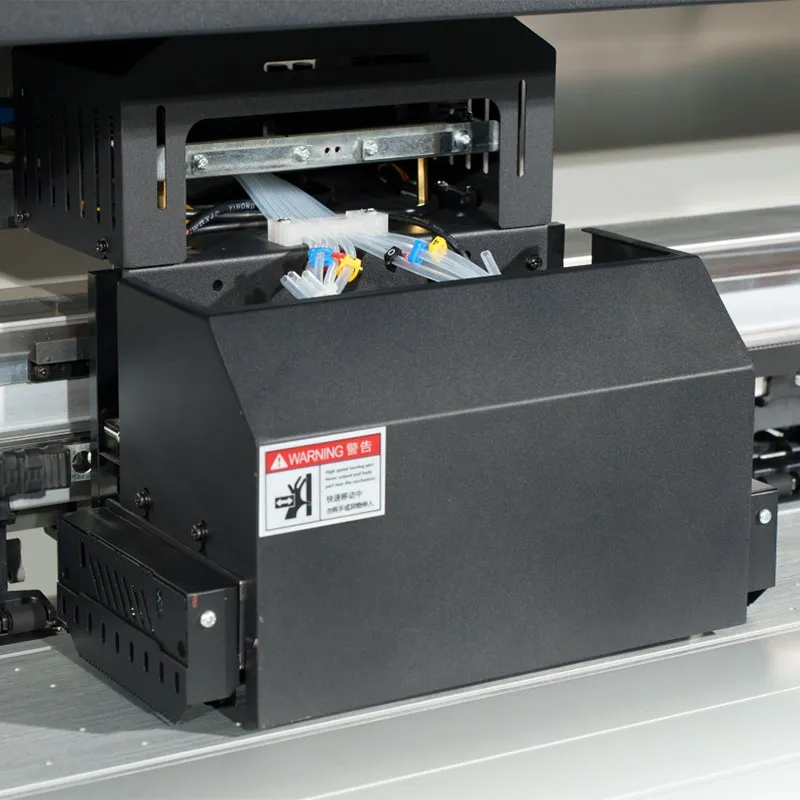

Anti-collision device effectively prevents the head from hitting the material or other objects during printing, protect head from scratch.
Pinch roller pressure can be adjusted according to material properties,ensure even pressure and smooth feeding without bulge or wrinkles
Application
Flex banner/One-way vision/Tarpaulin/car sticker/PU/Photo paper/wall paper
Technical Parameters
|
Model No. |
LY3202 |
|
|
Head Type |
Epson i3200/XP600/i1600(optional) |
|
|
Head No. |
2H |
|
|
Printing technology |
Micro-piezoelectric inkjet printing technology |
|
|
Printing Color |
CMYK |
|
|
Max Printing Width |
3200mm |
|
|
XP600-2H |
i3200-2H |
|
|
Printing Speed |
4pass：24m²/H |
4pass：30m²/H |
|
6pass：16m²/H |
6pass：20m²/H |
|
|
8pass：12m²/H |
8pass：16m²/H |
|
|
Application |
Flex banner/One-way vision/Tarpaulin/car sticker/PU/Photo paper/wall paper |
|
|
Media Type |
Max :3.2m |
|
|
Thickness:0~1mm |
||
|
Weight:0~40KG |
||
|
Heating system |
Printing platform front and back heating system |
|
|
Ink Supply System |
Ink type:Eco solvent ink/water based ink |
|
|
color：CMYK |
||
|
Ink cartridge capacity：220CC ink tank capacity:2L |
||
|
Take Up System |
Heavy motor feeding ,+double motor take up |
|
|
Drying System |
Infrared heater+cooling fan |
|
|
File Format |
JPG,PDF,TIF,BMP |
|
|
RIP Software |
Maintop/Flexi(optional) |
|
|
Board |
Honson |
|
|
Data transmission interface |
Gigabit Ethernet port |
|
|
Power Input |
220V AC |
|
|
Power Consumption |
2KW/8KW |
|
|
Net Weight |
300KG |
|
|
Machine Size |
4340mm*900mm*1350mm |
|
|
Packing Size |
4460mm*760mm*850mm |
|
|
Gross Weight |
350KG |
|
|
Working Environment |
Low dust, good ventilation, and avoid direct sunlight Temperature:24℃-26℃,Humidity:35%-65%RH |
|
