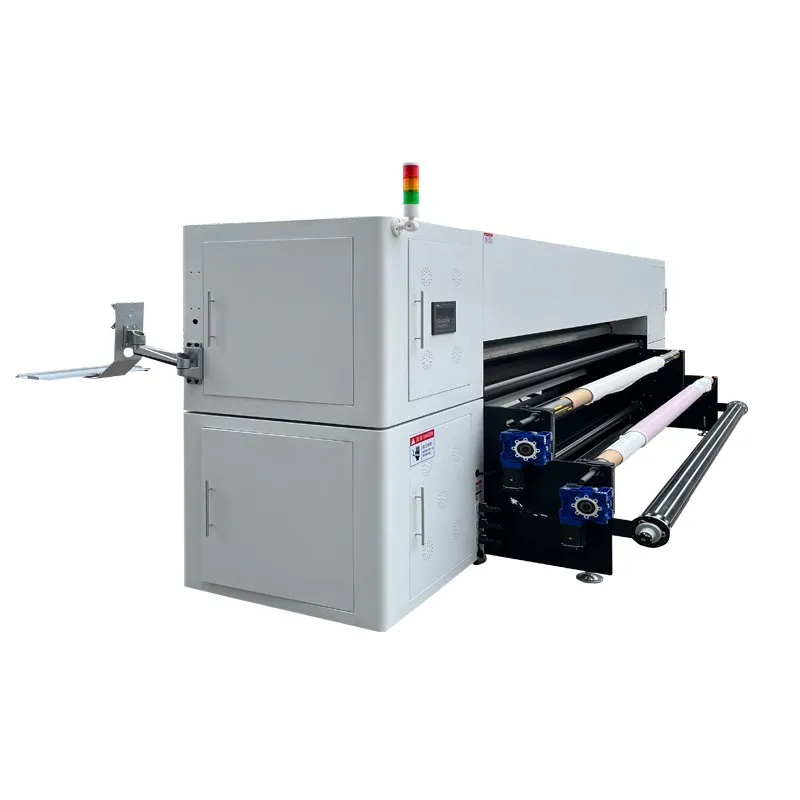

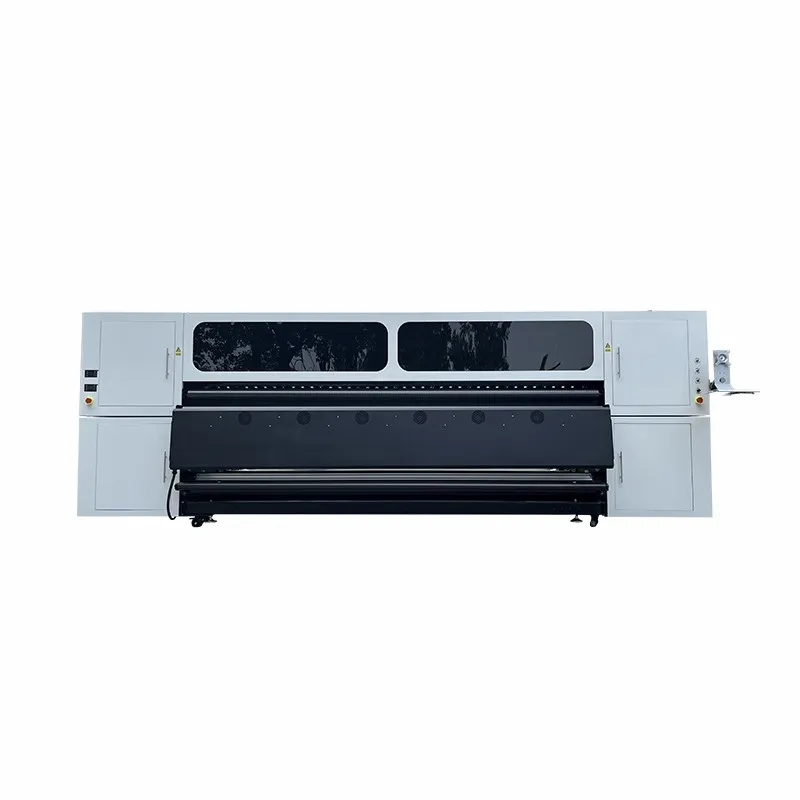

Paper Transfer Printer
Head Type and No.: Epson i3200，8H
Printing Speed: 8H，2pass: 300m²/H，4pass: 150m²/H，6pass: 75m²/H
Hangzhou Yulan Technology Co., Ltd. is one of the leading manufacturers and suppliers of paper transfer printer in China, specialized in providing high quality equipment with the latest design. If you're going to wholesale the newest paper transfer printer made in China, welcome to get more information from our factory.
Product Name:Paper Transfer Printer
A paper transfer printer is used to print designs onto transfer media that can be applied to fabrics and other surfaces using heat. With precise ink control and strong compatibility with different transfer papers, a paper transfer printer supports flexible customization for apparel and promotional products. Overall, a paper transfer printer offers versatility, reliable performance, and consistent print quality for small to medium printing operations.
Specification:
10ft wide format printer with 8pcs EPSON i3200 head
Application:Bedding/curtains/tablecloths/shower curtains/clothing/indoor and outdoor tents, umbrellas/floor MATS, carpets/personalized custom mugs, handbags
What "Fabric" can do sublimation printing ?
Polyester Fabric like Jersey knit,Interlock fabric,Microfiber,Chiffon,Satin,Polyester canvas
Soft Signage fabric,Curtain&Window fabrics(Polyester-based)
What" Fabric" couldn't use sublimation printing ?
Cotton/Silk/Nylon/Wool/Bamboo/Linen/Hemp and dark-colored fabrics.
Typical Features of ulin wide format sublimation printer

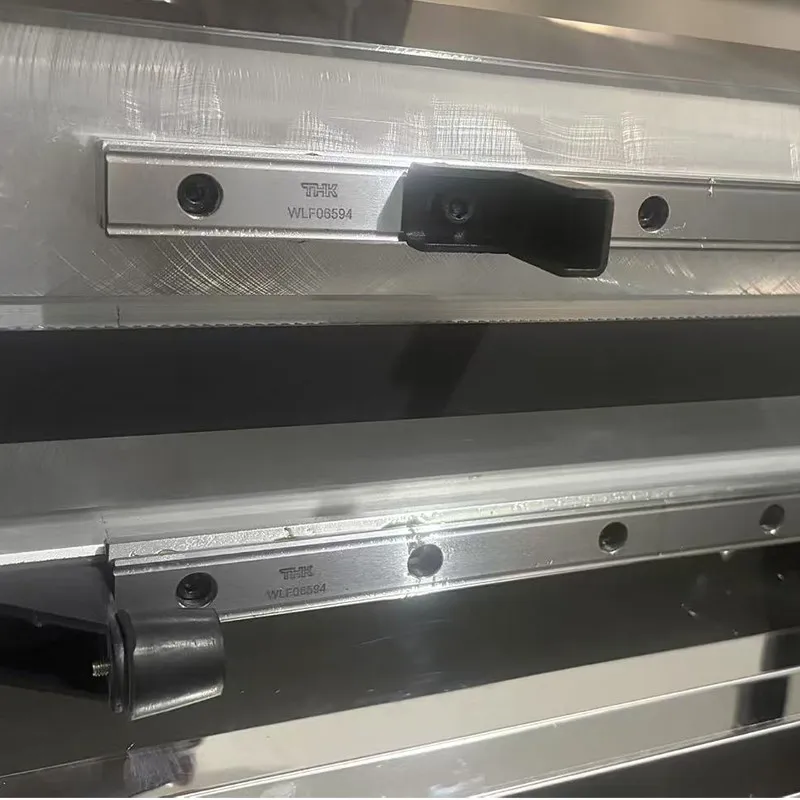

THK mute guide rail, low noise ,superior loading capacity, ultra-precision&Rigidity, Low friction&smooth motion, long life span.

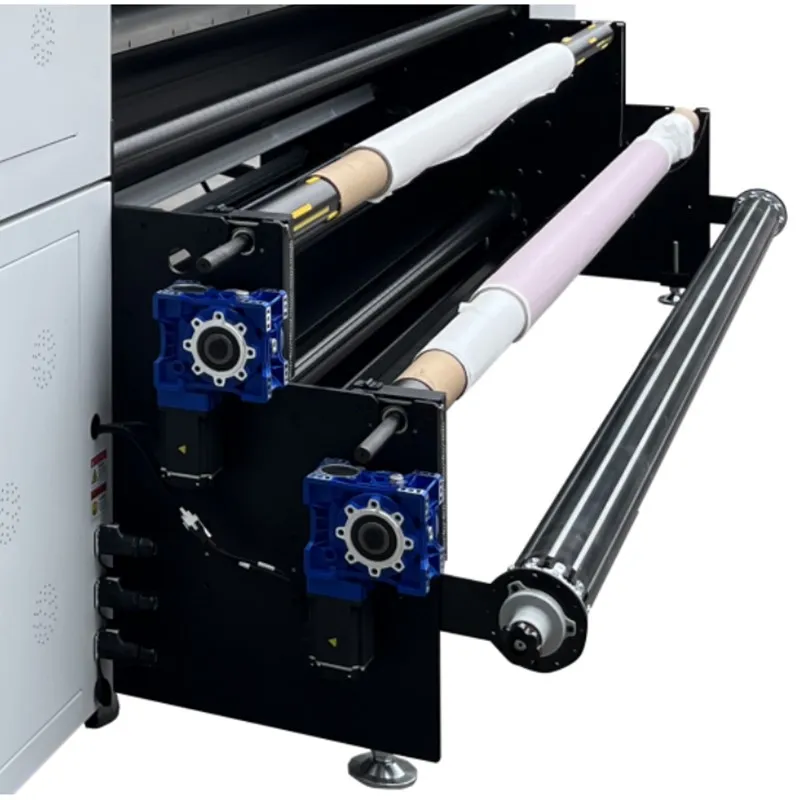

Heavy motor strong structure feeding and take up system ,support wide format 10ft sublimation paper

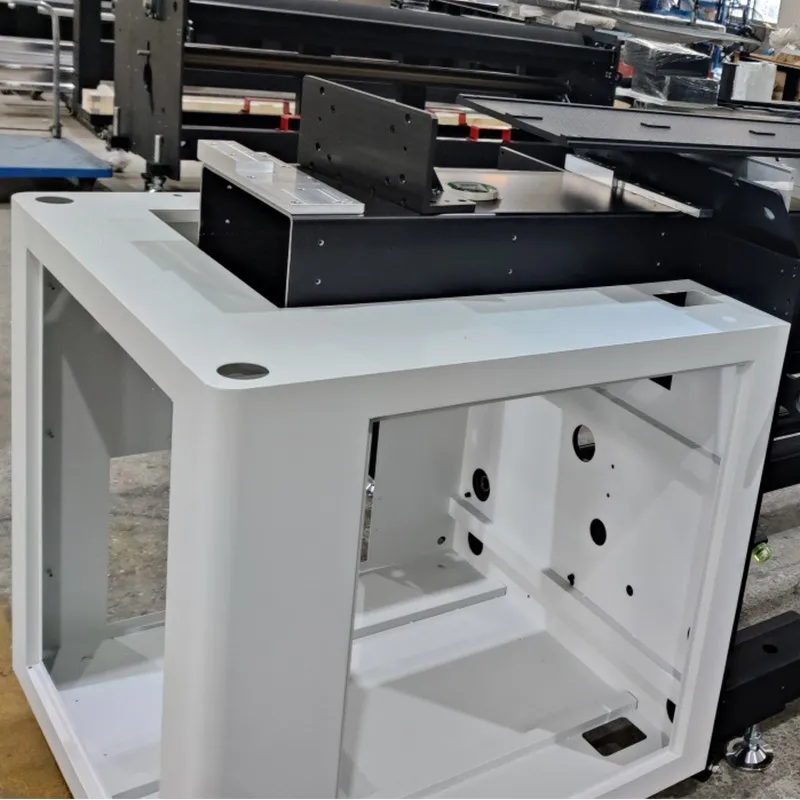

Industrial body structure ,Durable and shock-resistant,The body does not shake or shift during high-speed printing,Suitable for 24-hour industrial-grade continuous printing

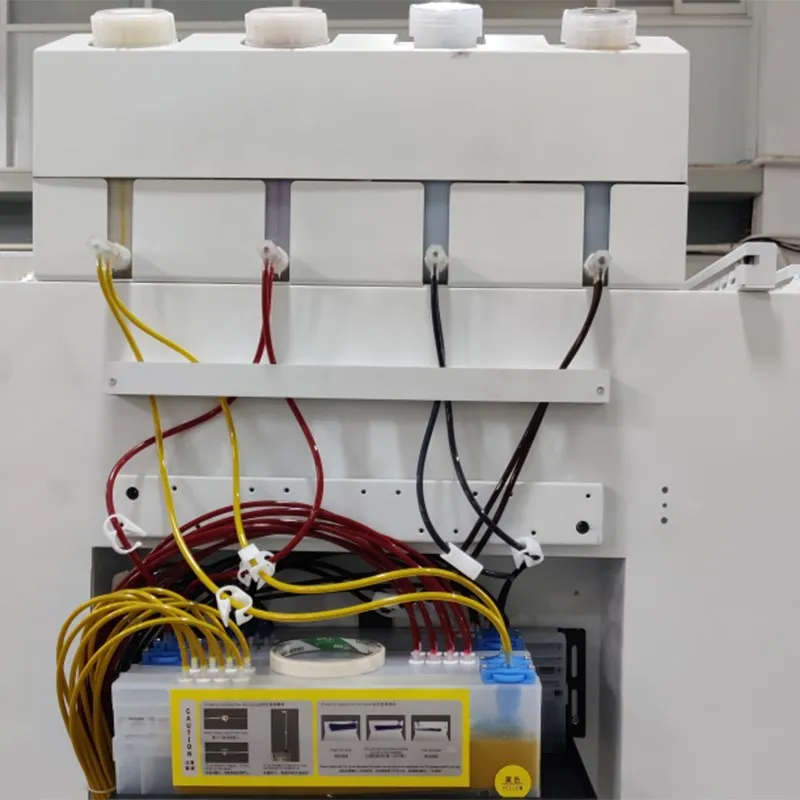

Positive pressure continuous ink supply system, 5L large ink tank continuous ink supply without interruption.

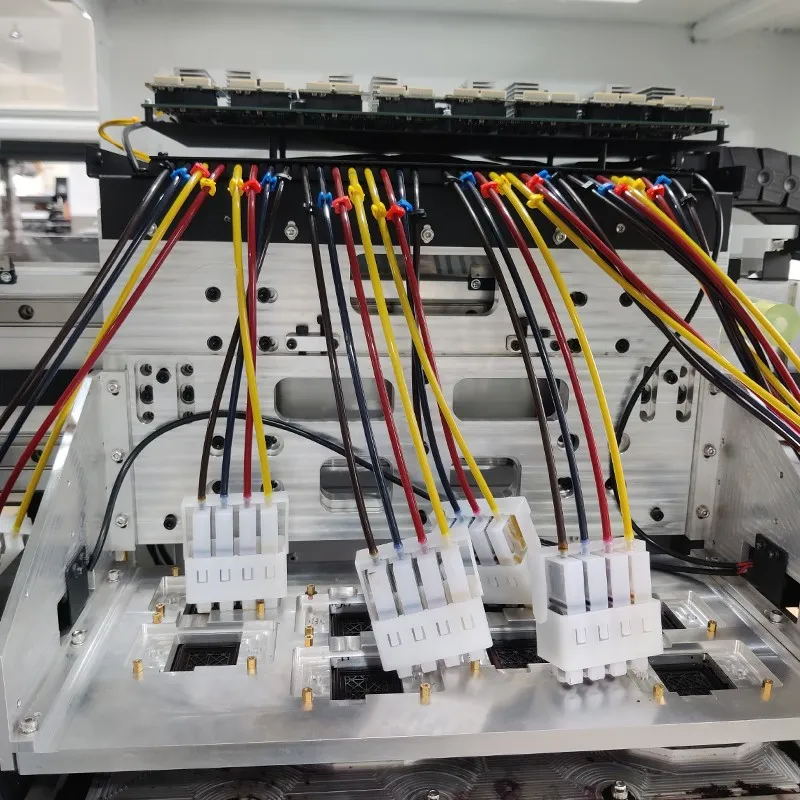

Automatic capping station precisely controls the lifting height and the bonding force, enabling rapid automatic cleaning and moisture of the printhead.

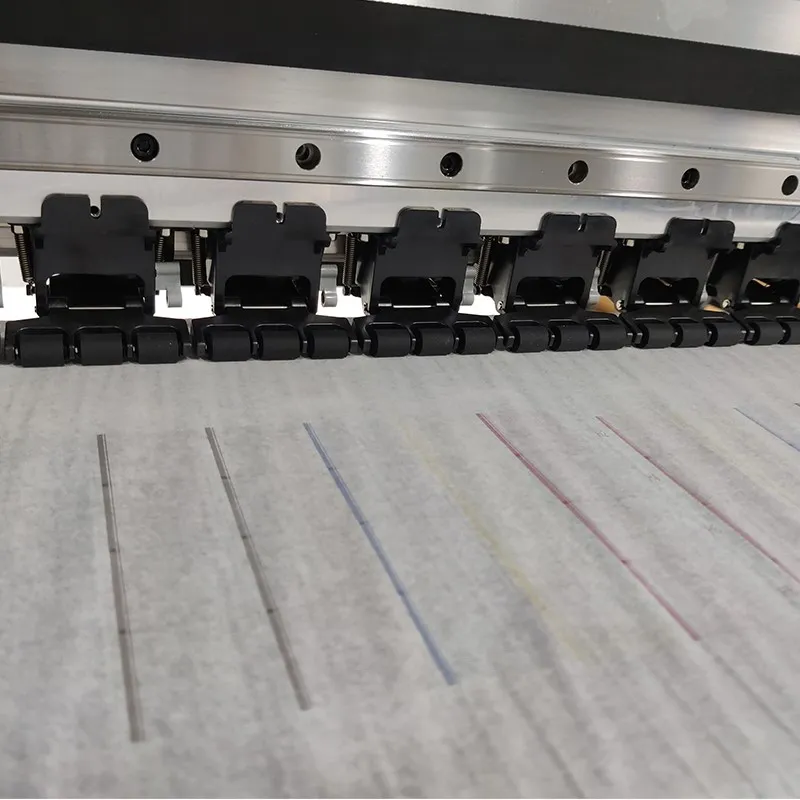

Pressure adjustable pinch-roller ,Pressure can be adjusted according to the material characteristics to ensure uniform overall pressure, making the paper feeding more accurate without any wrinkles or bulges.
Technical Parameters
|
Model No. |
LS3208 |
|
Head Type |
Epson i3200 |
|
Head No. |
8H |
|
Printing Technology |
Micro-piezoelectric inkjet printing technology |
|
Printing Color |
CMYK/LC LM LK LLK(FM FY ORGB) |
|
Max Printing Width |
3200mm |
|
Printing Speed |
8H |
|
2pass：300m²/H |
|
|
4pass：150m²/H |
|
|
6pass：75m²/H |
|
|
Media Type |
Sublimation Paper ,Max Width:3.2m |
|
Thickness:0~1mm |
|
|
Weight:0~200KG |
|
|
Rewinding System |
Heavy motor feeding and take up system |
|
Ink Supply System |
Sublimation ink |
|
Color：CMYK/LC LM LK LLK(FM FY ORGB) |
|
|
Ink cartridge capacity：220CC Ink tank capacity:5L |
|
|
Drying System |
Infrared heater+cooling fan |
|
File Format |
JPG,PDF,TIF,BMP |
|
RIP Software |
RIIN/Neostampa (optional) |
|
Board Type |
Honson |
|
Data Transfer Interface |
USB3.0 |
|
Power Input |
220V AC |
|
Power Consumption |
30KW |
|
Machine Size |
1500KG |
|
Working Environment |
4840mm*1250mm*1520mm |
|
Drying System |
5280mm*1480mm*1870mm |
|
RIP Software |
Low dust, good ventilation, and avoid direct sunlight Temperature:24℃-26℃,Humidity:35%-65%RH |
