Sublimation Printing Machine
Head Type and No.: Epson i3200-A1，16H
Printing Speed: 16H，2pass: 600m²/H，4pass: 300m²/H，6pass: 150m²/H
Hangzhou Yulan Technology Co., Ltd. is one of the leading manufacturers and suppliers of sublimation printing machine in China, specialized in providing high quality equipment with the latest design. If you're going to wholesale the newest sublimation printing machine made in China, welcome to get more information from our factory.
Product Name: Sublimation Printing machine
A sublimation printing machine is engineered for precision color transfer, allowing designs to become part of the fabric rather than sitting on the surface. By using specialized inks and controlled heat, a sublimation printing machine produces lightweight, breathable prints with excellent detail retention. For businesses seeking consistent output and fast production, a sublimation printing machine offers stable performance and low maintenance operation.
Specification:
10ft printer with 16heads EPSON i3200

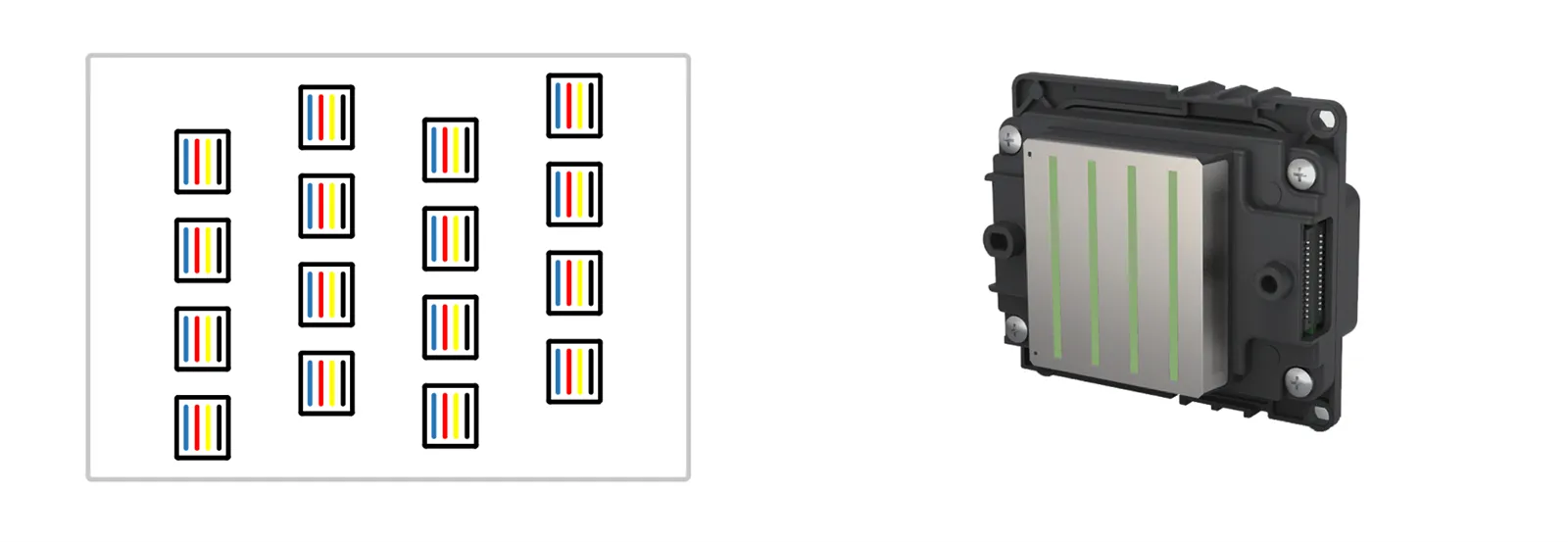

High-speed micro-piezoelectric inkjet printing technology, equipped with 16pcs EPSON i3200 print head, support variable ink droplet size ranging from 2.5 to 6pl, allowing for free control of the size of the sprayed ink droplets, thereby reducing the graininess of the picture, presenting more picture details, smooth color transition, and high saturation
Ulin-Your reliable sublimation printer supplier
China professional manufacturer of sublimation printers,your trusted partner for sublimation printing solutions on Apparel(Jersey /T shirt/sportswear/Sari),Home textile(Table cloth/Carpet/Bedding)and DIY gifts(Umbrella/Ceramic mug/bag/Cap/lanyard)
How many types of sublimation printer we have?
Classified by Printing Width :1.8m/1.9m/3.2m
Classified by printing speed:2heads sublimation printer/4heads sublimation printer/8heads sublimation printer/16heads sublimation printer and 24heads sublimation printer
Ulin Sublimation Printing Machine Typical Features

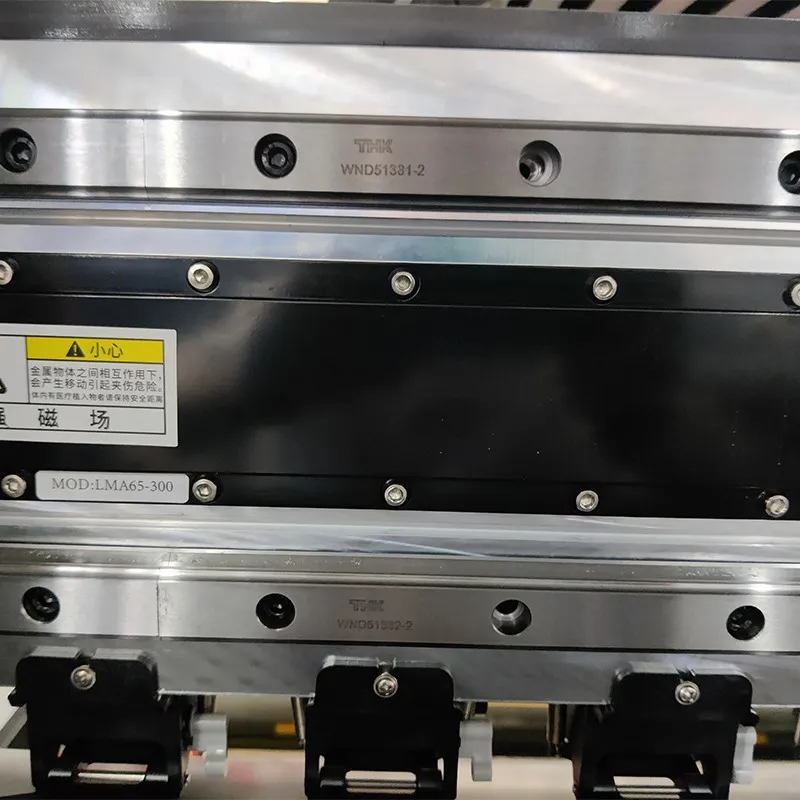

THK Mute guide rail, low noise, superior loading capacity, ultra-precision&Rigidity, Low friction&smooth motion, long life span.

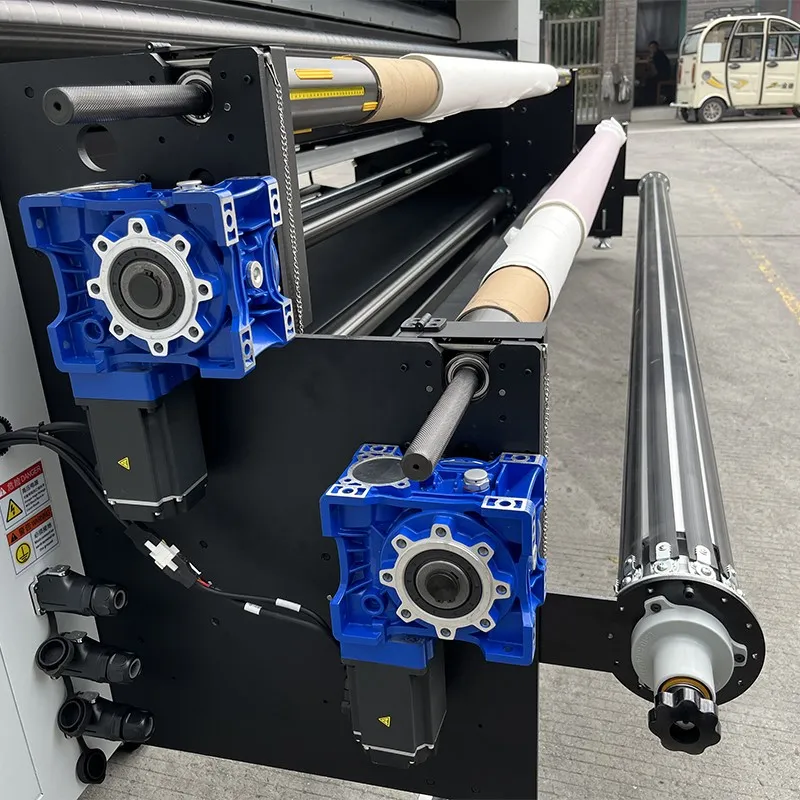

Heavy motor strong structure feeding and take up system ,support wide format 10ft sublimation paper

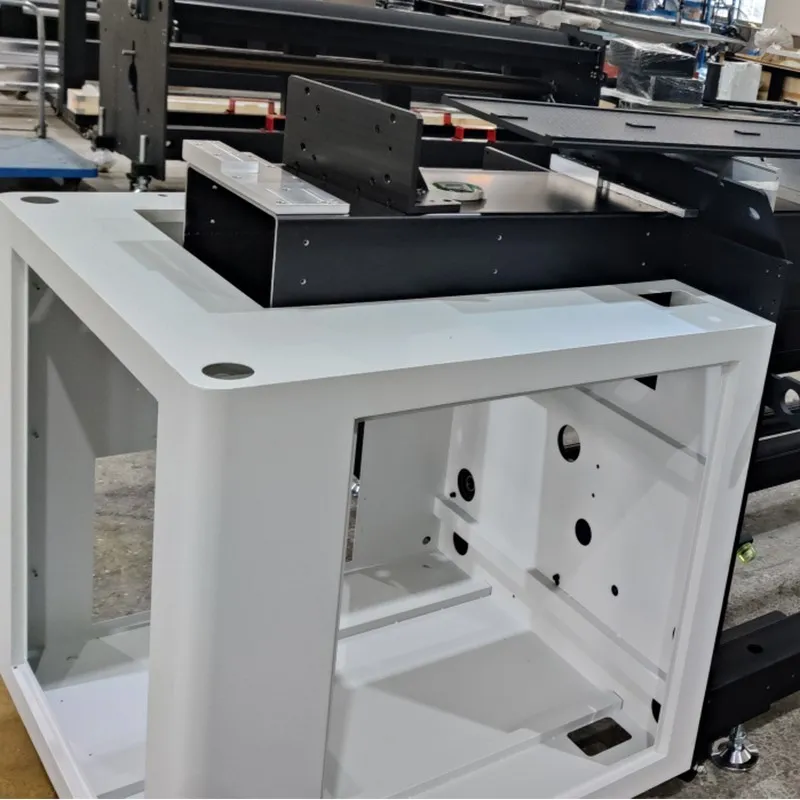

Industrial body structure, Durable and shock-resistant, The body does not shake or shift during high-speed printing, Suitable for 24-hour industrial-grade continuous printing

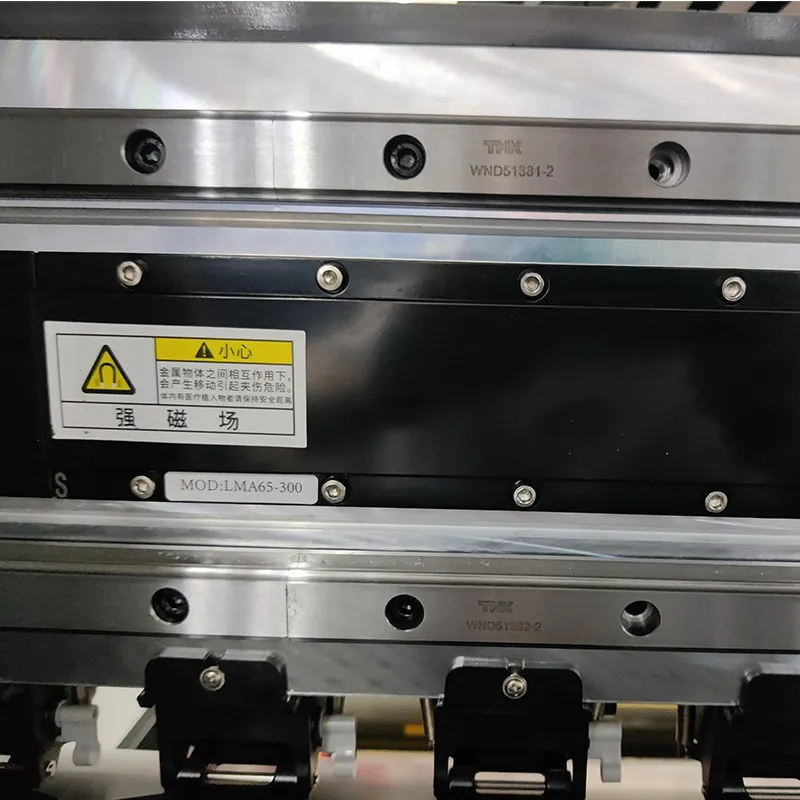

Magnetic levitation linear motor, No physical friction, Low noise, increase speed by 30% compared to traditional motors and 50% longer lifespan than traditional motors. suitable for 24-hour continuous printing work.

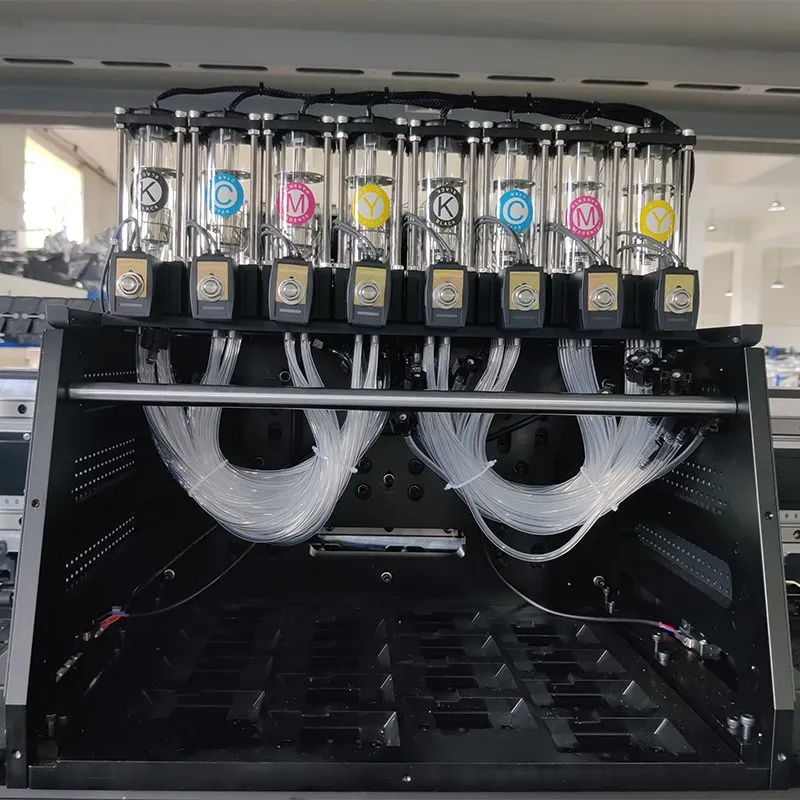

Negative pressure ink supply system with 10L ink tank -make sure continuous ink supply without break .precisely controls the ink volume, prevents ink back flow or waste, reduces ink bubbles in the ink tube.

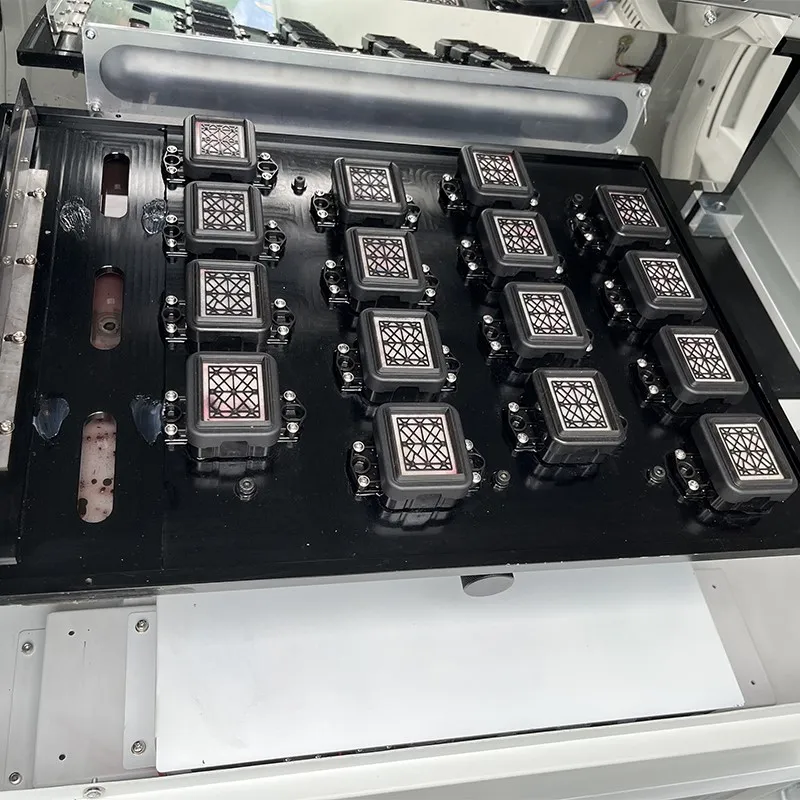

Automatic lifting capping system ,precisely controls the lifting height and the bonding force, enabling rapid automatic cleaning and moisture of the printhead
Technical Parameters
|
Model No. |
LS3216 |
|
Head Type |
Epson i3200-A1 |
|
Head No. |
16H |
|
Printing Technology |
Micro-piezoelectric inkjet printing technology |
|
Printing Color |
CMYK/LC LM LK LLK(FM FY ORGB) |
|
Max Printing Width |
3200mm |
|
Printing Speed |
16H |
|
2pass：600m²/H |
|
|
4pass：300m²/H |
|
|
6pass：150m²/H |
|
|
Media Type |
Thickness:0~1mm |
|
Weight:0~200KG |
|
|
Max Width:3.2m |
|
|
Ink Supply system |
Ink type :Sublimation ink |
|
Color：CMYKLC LM LK LLK(FM FY ORGB) |
|
|
Secondary ink cartridge+10L ink tank |
|
|
Winding System |
Heavy Motor feeding and take up |
|
Drying System |
Infrared heater+cooling fan |
|
File Format |
JPG,PDF,TIF,BMP |
|
RIP Software |
RIIN,Neostampa (Optional) |
|
Board Type |
Honson |
|
Data Transfer Interface |
USB3.0 |
|
Power Input |
220V AC |
|
Power Consumption |
30KW |
|
Net Weight |
1800KG |
|
Working Environment |
4840mm*1250mm*1520mm |
|
Packing Size |
5280mm*1480mm*1870mm |
|
Gross Weight |
1900KG |
|
Working Environment |
Low dust, good ventilation, and avoid direct sunlight Temperature:24℃-26℃,Humidity:35%-65%RH |
