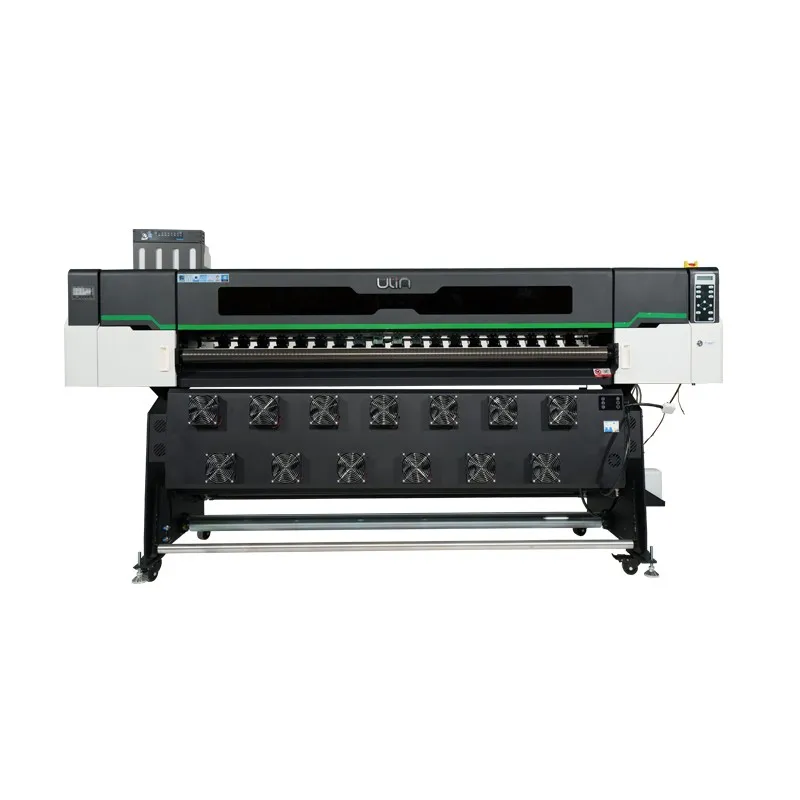

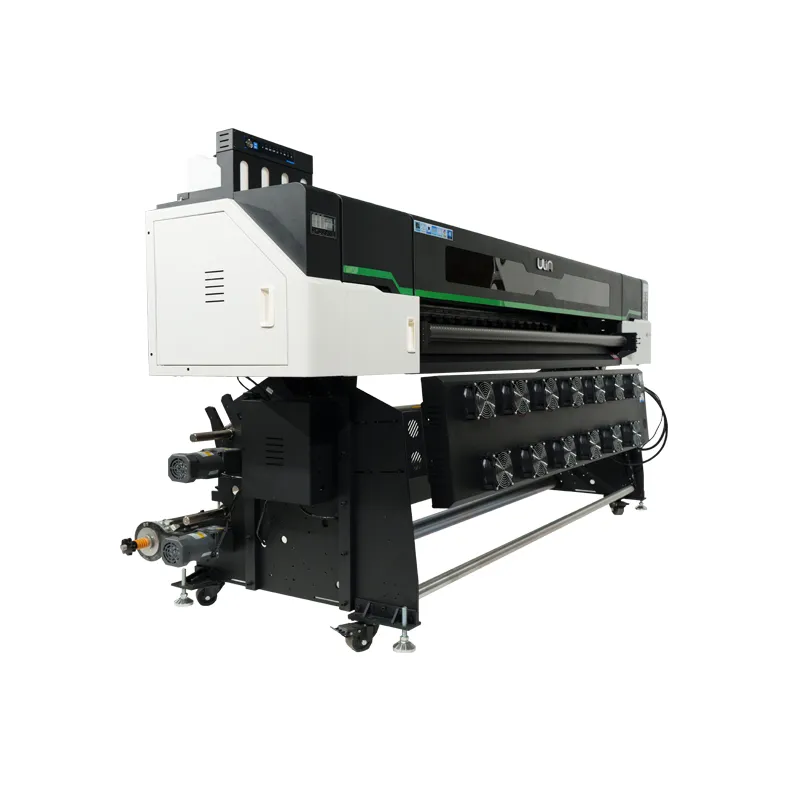

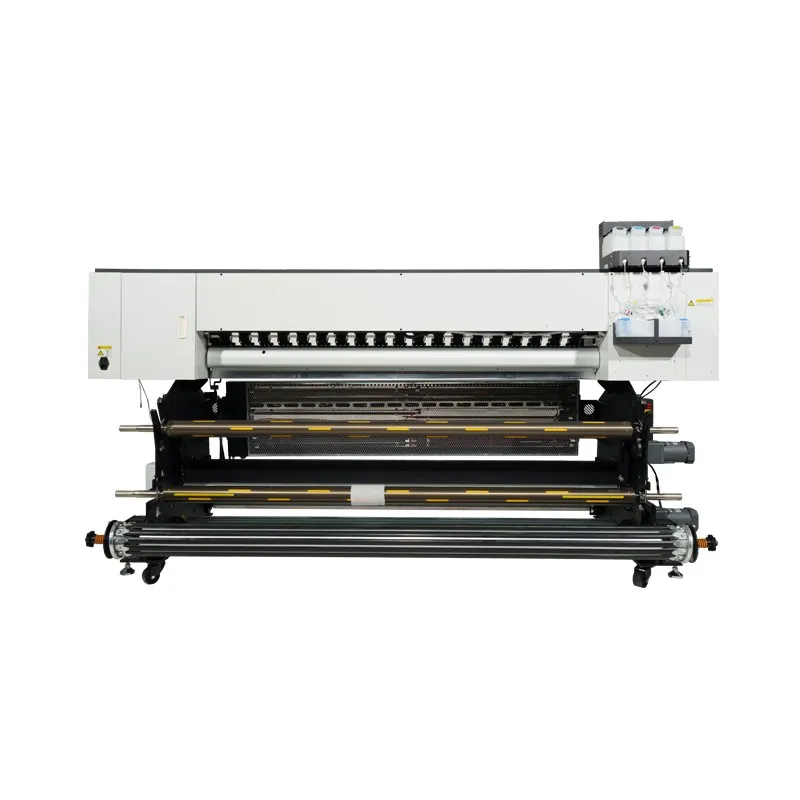

Large Format Sublimation Printer

Model No.: LX1802-Z
Head Type and No.: Epson i3200,2Heads
Printing Speed: 4pass: 30m²/H,6pass: 20m²/H
Send Inquiry
Product Introduction

Hangzhou Yulan Technology Co., Ltd. is one of the leading manufacturers and suppliers of large format sublimation printer in China, specialized in providing high quality equipment with the latest design. If you're going to wholesale the newest large format sublimation printer made in China, welcome to get more information from our factory.



Product Name:Large format sublimation printer



A large format sublimation printer is built for high-volume textile production, allowing wide-width printing with excellent color consistency. Designed for continuous operation, a large format sublimation printer supports long rolls of transfer paper and ensures stable output for industrial use. For businesses handling oversized graphics and bulk orders, a large format sublimation printer delivers efficiency, scalability, and professional-grade results.



Specification:



1.8m with 2pcs EPSON i3200 heads and thousands meter feeding and take up system

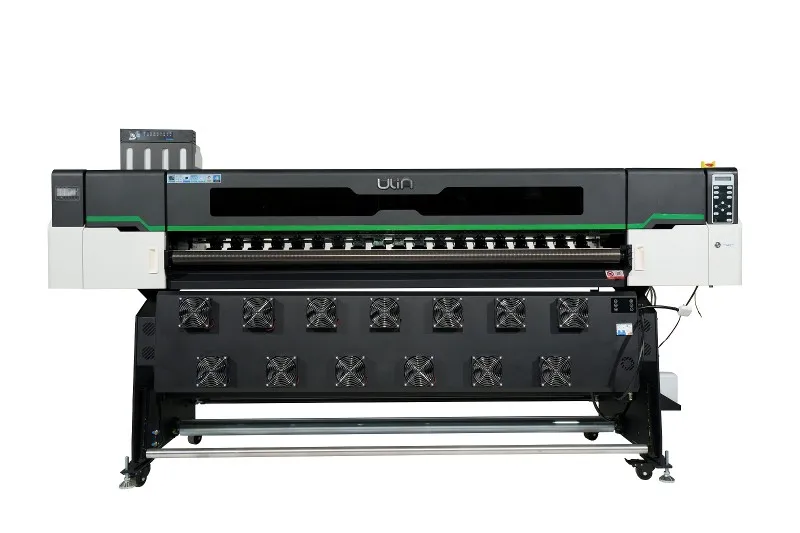

product-1600-1066

What is a Sublimation Printer ?

A sublimation printer is a printer designed to Print designs onto sublimation transfer paper ,Use sublimation ink,Transfer the printed image onto a product using a heat press,When heated(about 180~220 ℃,the ink turns into gas and bonds permanently with the material)

product-1600-1066

What do we need if we wanna to start a sublimation printing business?



1) Sublimation printer

01

2) Sublimation ink

02

3) Sublimation paper

03

4) Heat transfer machine

04

5) Media (Sublimation printing can be applied to Polyester fabrics like T shirts,Sportswear,DIY Mouse pads ,ceramic mug ,lanyard etc)

05



Ulin Wide Format Sublimation Printer Typical Features



Hiwin guide rail

Hiwin guide rail, high precision&Accuracy, Smooth&Low-friction motion.

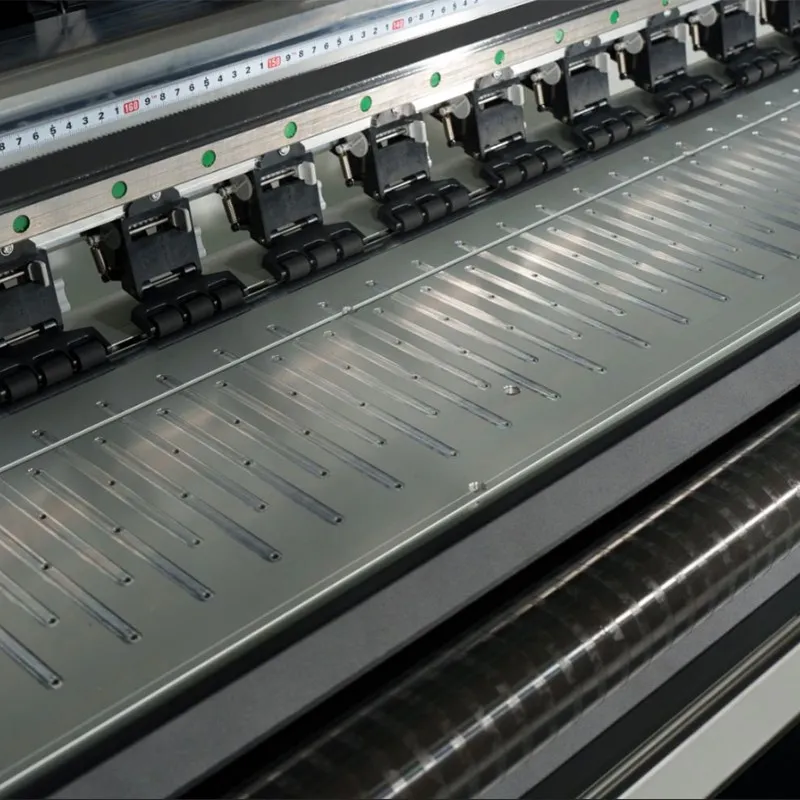

Milling groove platform

Guide through air suction platform with enhanced suction power ensure smooth paper feeding without bulging.

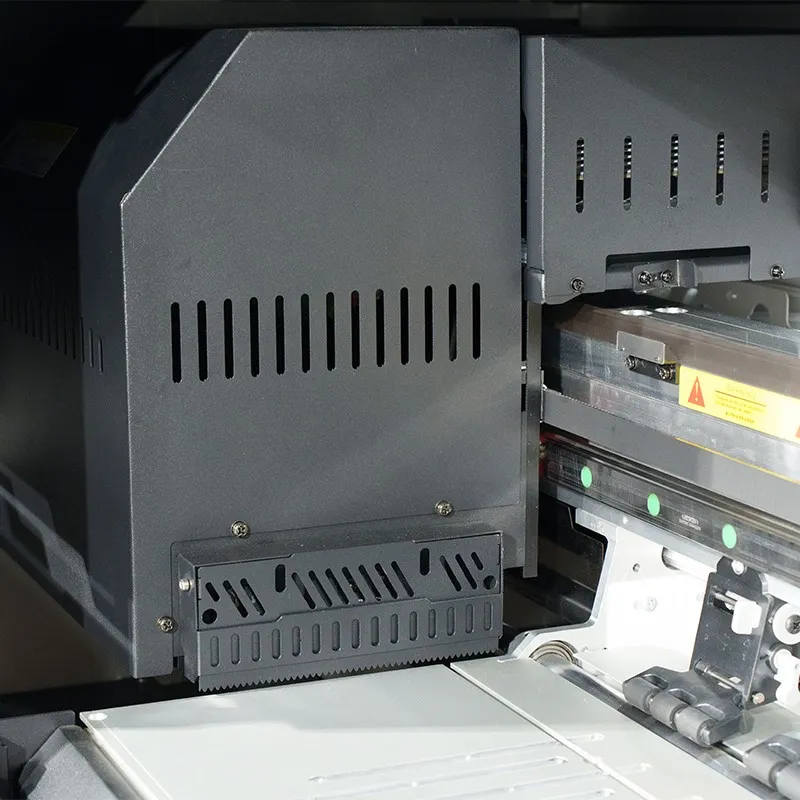

Anti-collision

Anti-collision device , printhead carriage will auto stop when hit obstacles ,protect the printhead from scratch.

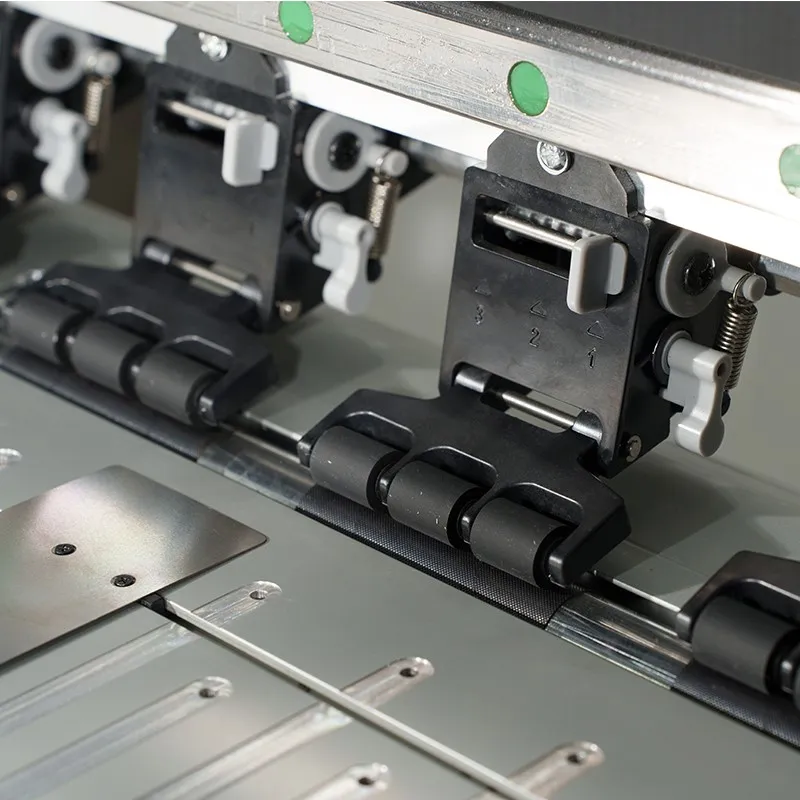

Pinch roller

Three-stage adjustable paper-pressing rollers allow pressure adjustment according to material properties,ensuring uniform overall pressure for precise paper feeding without creasing or bulging

3-section infrared heater

Three-stage adjustable infrared lamp tubes enable zoned,adjustable and controllable operation,ensuring efficient drying while reducing energy.

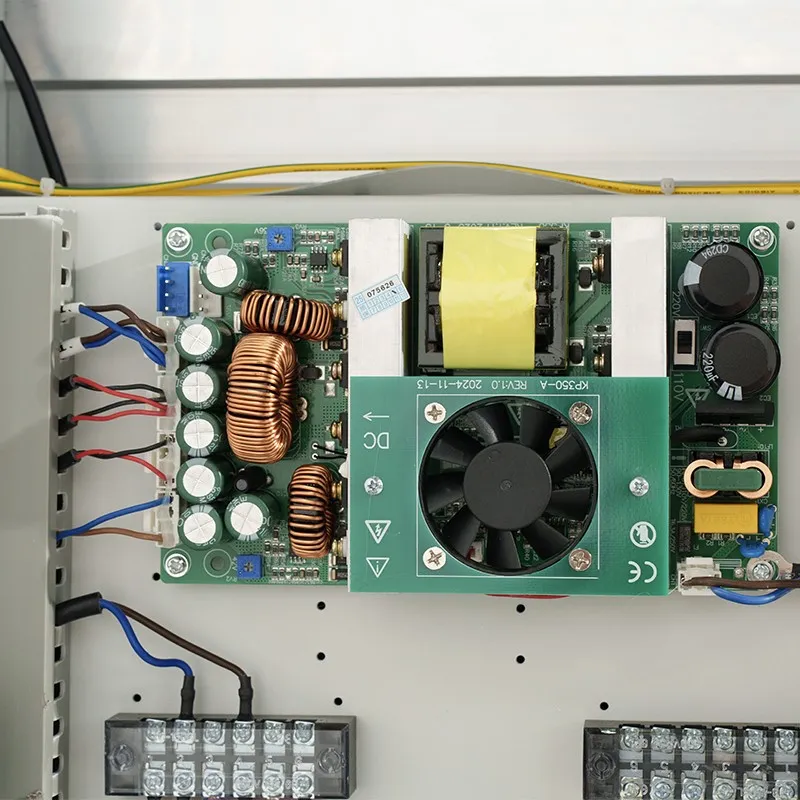

Integrated power supply

Integrated power supply, strong anti-interference performance, stable voltage and current output.

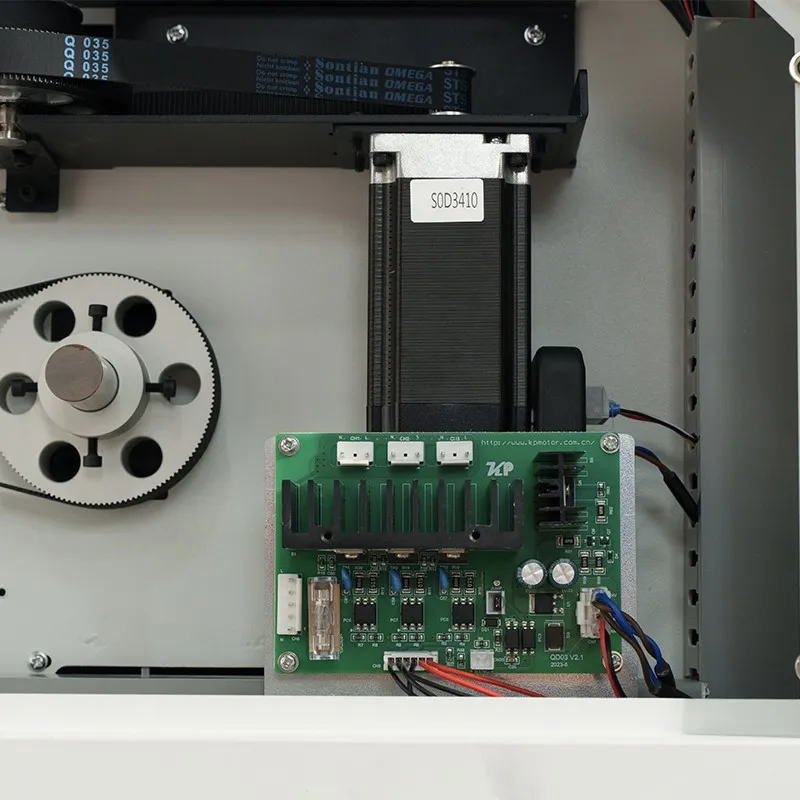

Leadshine Servo motor

Leadshine servo motor,high precision,fast response,stable operation,low noise ,long service life.

Intelligent ink supply

Intelligent ink supply system with ink shortage alarm , full waste ink alarm.

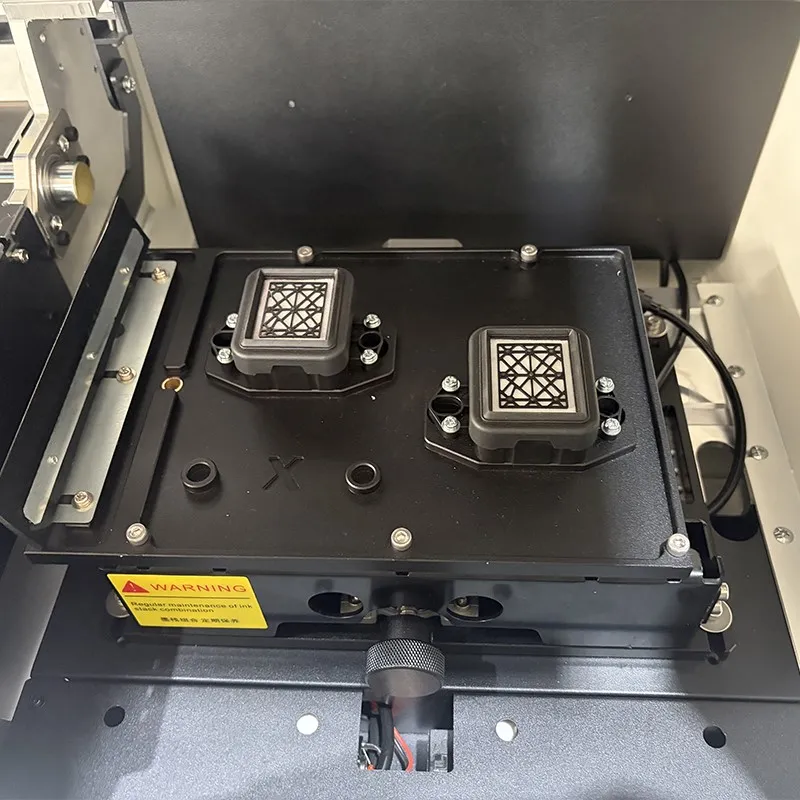

capping system

Auto capping system,smooth lifting,precise positioning,auto cleaning and moisturizing.

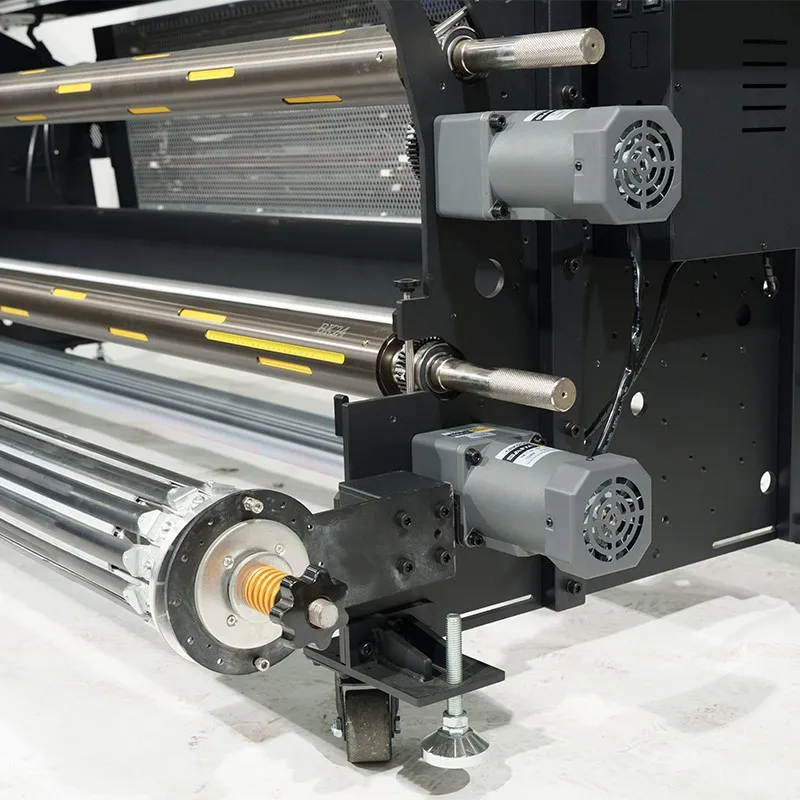

Heavy take up system

Heavy feeding and take up system , for collecting low gram sublimation paper.



Sublimation Printing Applications



1

Home Textile/Apparel/DIY gifts (Cap/Ceramic mug/Mouse pad/school bag/umbrella/lanyard)



Technical Parameters



Model No.

LX1802-Z

Head Type

Epson i3200

Head No.

2Heads

Printing Technology

Micro-piezoelectric inkjet printing technology

Printing Color

CMYK/LC LM LK LLK(FM FY ORGB)

Max Printing Width

1820mm

4pass:30m²/H

6pass:20m²/H

Application

Sublimation Paper

Media Type

Max Width:1.82m

Thickness:0~1mm

Weight:0~40KG

Ink Supply System

Ink type:Sublimation ink

color:CMYK

Ink cartridge capacity:220CC Ink tank capacity:2L

Rewinding System

Heavy motor feeding and take up system

Drying System

Infrared heater+cooling fan

File Format

JPG,PDF,TIF,BMP

RIP Software

RIIN/Neostampa (optional)

Board Type

Honson

Data Transfer Interface

Gigabit Ethernet port

Power Input

220V AC

Power Consumption

2KW/4KW

Net Weight

400KG

Machine Size

2870mm*1050mm*1370mm

Packing Size

2970mm*1050mm*1550mm

Gross Weight

470KG

Working Environment

Low dust, good ventilation, and avoid direct sunlight

Temperature:24℃-26℃,Humidity:35%-65%RH
