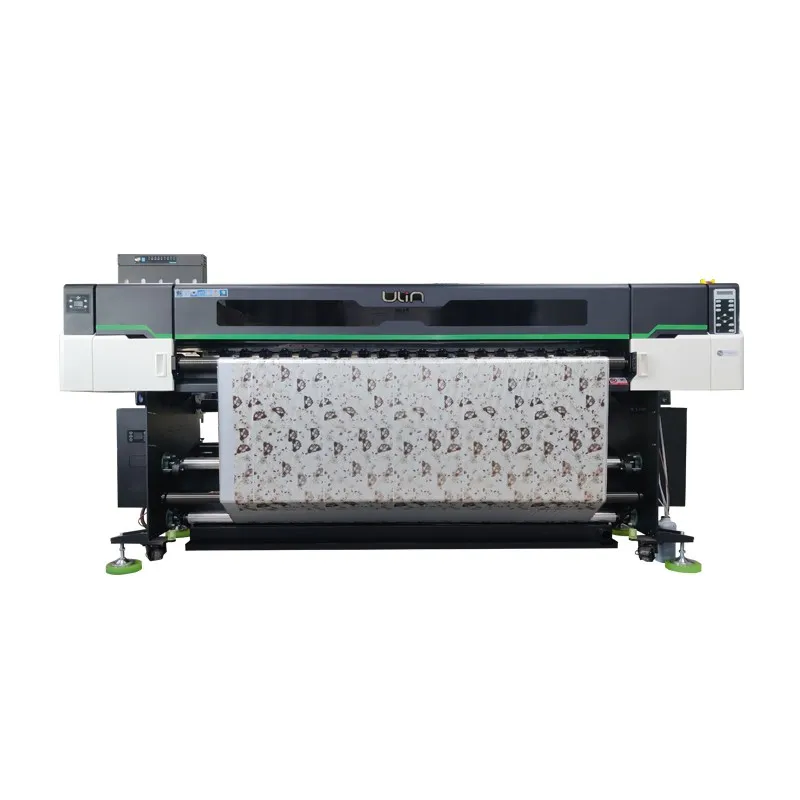

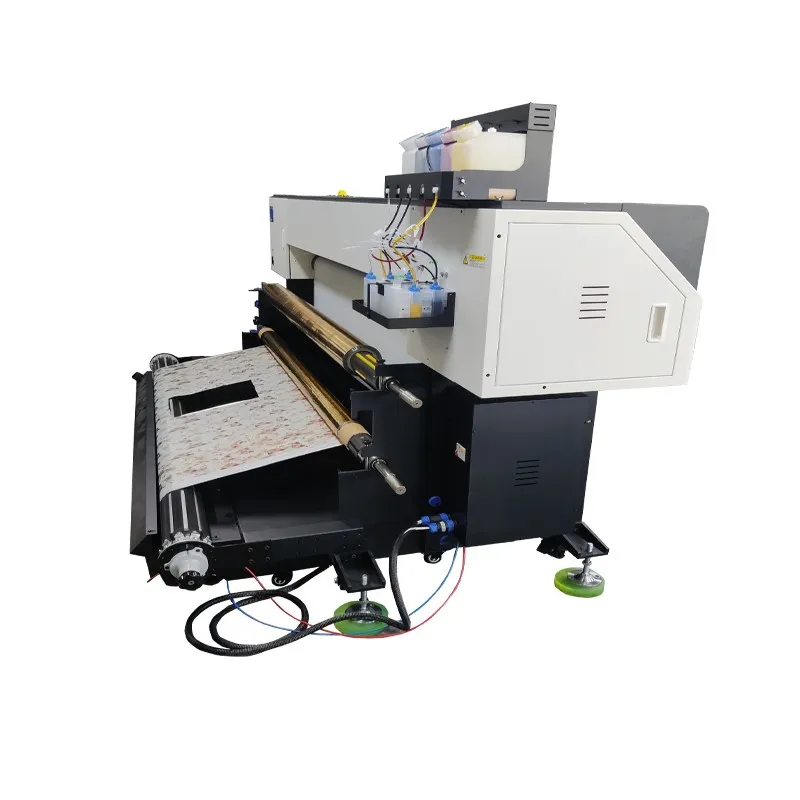

Foil Printing Machine
Head Type and No.: EPSON i3200-A1，2H
Printing Speed: 360*2400dpi :20m²/H
Hangzhou Yulan Technology Co., Ltd. is one of the leading manufacturers and suppliers of foil printing machine in China, specialized in providing high quality equipment with the latest design. If you're going to wholesale the newest foil printing machine made in China, welcome to get more information from our factory.
Product Name:Foil Printer
What is Foil Printer?
Foil printer(foil Printing machine) is a printing solution used to create metallic (golden,silver,or colored foil)designs on textile,instead of printing gold ink directly.Foil printer(foil Printing machine) uses adhesive printing +foil transfer to achieve shiny,reflective metallic finish on fabric.
What are advantages of Ulin Foil printer?
Ulin Foil printer(foil printing machine) offers luxury metallic effects,high visual impact,and strong profitability,making them ideal for fashion,branding,and premium customization applications.
Foil Printer Application:
Technical Parameters
|
Model No. |
FS1802 |
|
Head Type |
EPSON i3200-A1 |
|
Head No. |
2H |
|
Printing Color |
Glue+CMYK |
|
Printing Size |
<1.82m |
|
Printing Speed |
360*2400dpi :20m²/H |
|
Printing Media |
Foil |
|
Ink Supply System |
Sublimation ink |
|
Color ：CMYK |
|
|
Ink cartridge:220CC+ Ink tank:2L |
|
|
Feeding and Take Up System |
Heavy Duty Feeding & Take Up System |
|
Drying System |
Infrared heater and fan |
|
File Format |
JPG,PDF,TIF,BMP |
|
RIP Software |
RIIN,Neostampa |
|
Board Type |
Honson |
|
Data transmission interface |
GigE Vision |
|
Power Input |
220V AC |
|
Power Consumption |
10KW |
|
Net Weight |
400KG |
|
Working Environment |
Low dust, good ventilation, avoid direct sunlight Working Temperature:24℃-26℃,Humidity:35%-65%RH |
Typical Features

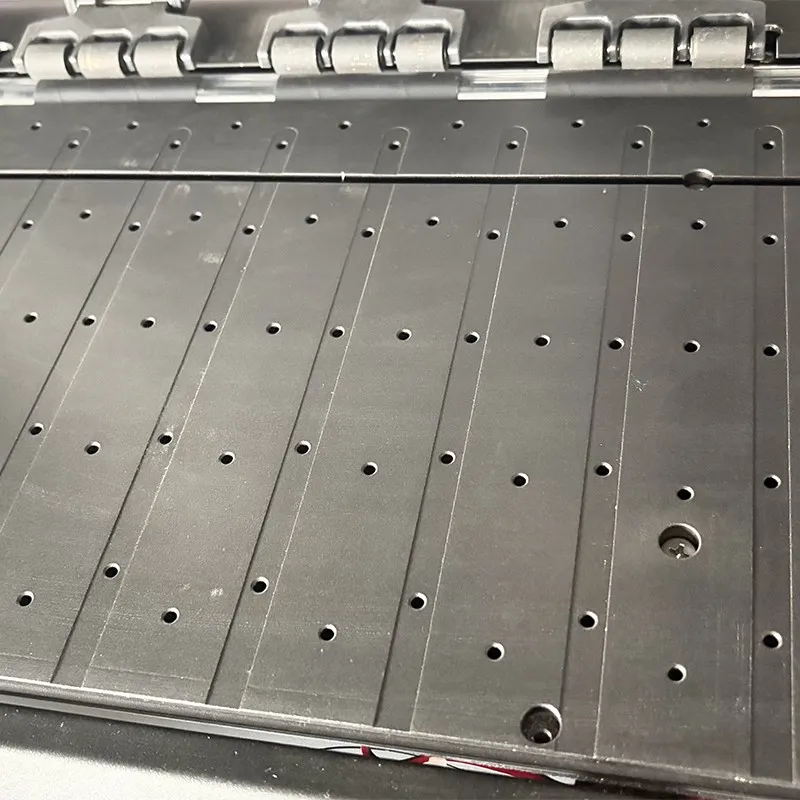

Water-cooled platform, ensure smooth material feeding and prevent the deformation of the printing media caused by temperature rise during continuous long-term printing

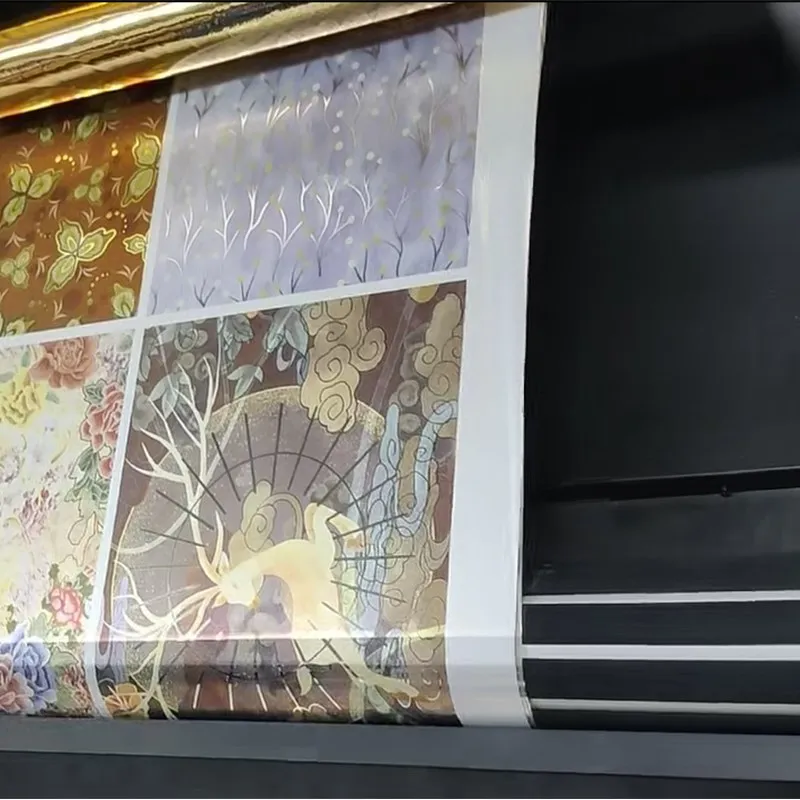

Bottom tunnel circulation drying system. Convenient to observe the printing quality and prevent heat leakage to ensure optimal drying performance

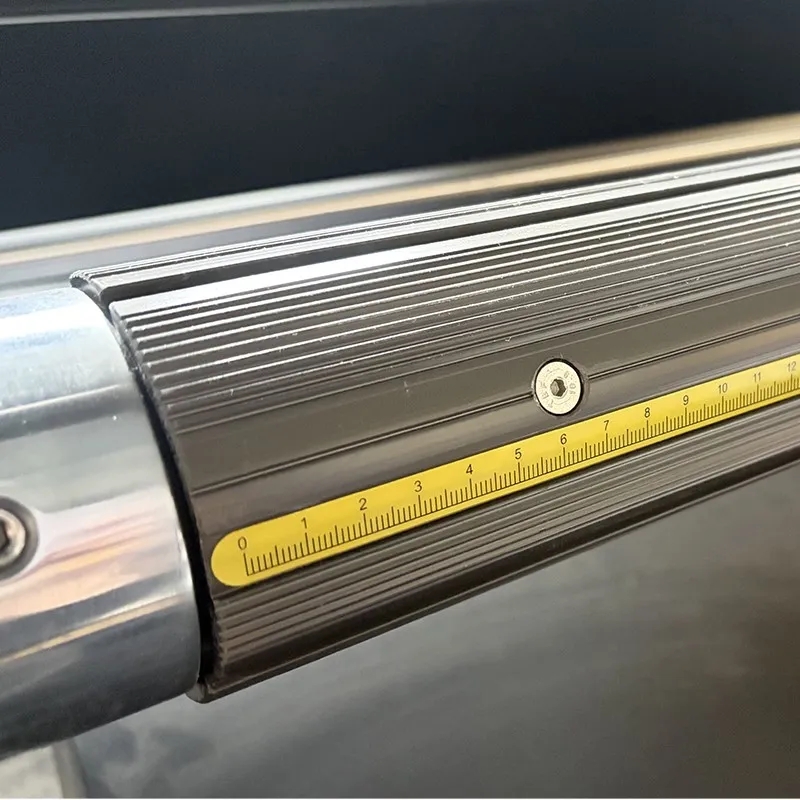

Tile-type air expansion shaft,can effectively prevent paper roll deformation and achieve better winding and unwinding.
Leather strip roller is used for winding ,enabling smoother material collection.

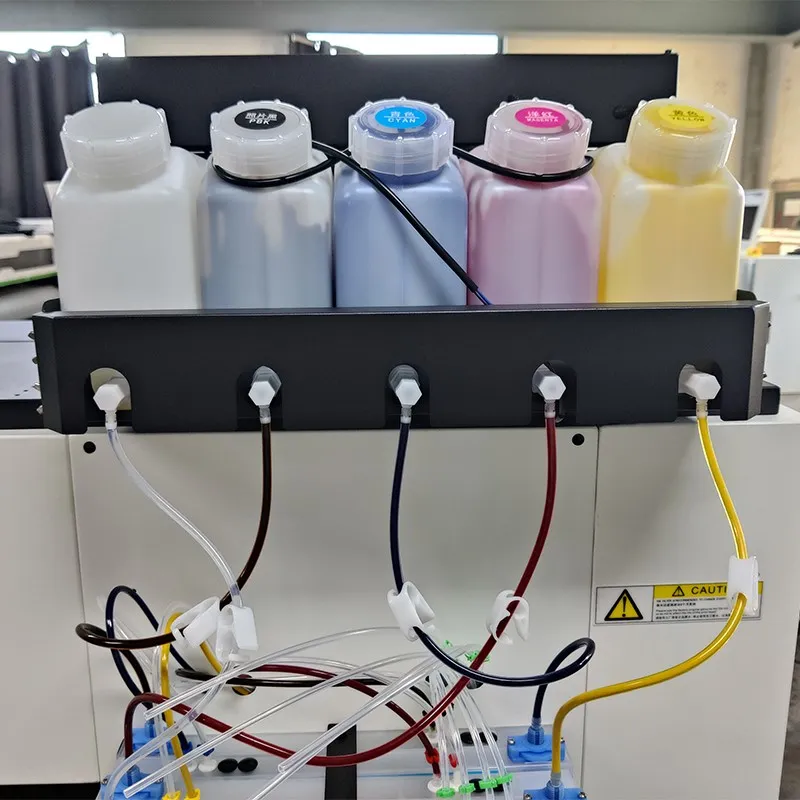

CISS with ink shortage alarm&full waste ink alarm,printing mode:Glue+CMYK.
