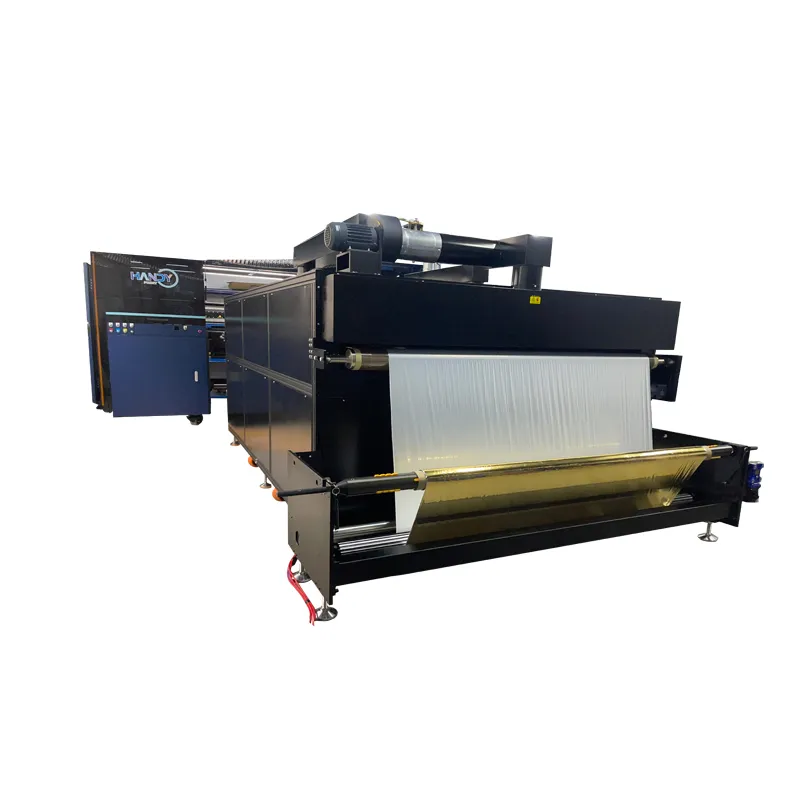

Golden Foil Printing Machine
Head Type and No.: EPSON i3200-A1，16H
Printing Speed: 4pass 135~150 m²/H
Hangzhou Yulan Technology Co., Ltd. is one of the leading manufacturers and suppliers of golden foil printing machine in China, specialized in providing high quality equipment with the latest design. If you're going to wholesale the newest golden foil printing machine made in China, welcome to get more information from our factory.
Product Name：Golden Foil Printing Machine
A golden foil printing machine is specialized equipment used to create luxurious metallic effects on materials such as fabric and carpets ,By applying heat and pressure, the golden foil printing machine produces shiny, eye-catching finishes that enhance visual appeal. With precise control and stable performance, the golden foil printing machine is widely used in textile decorative printing.
What are the main types of Ulin Golden foil Printing machines?
1)1.8m Golden foil printing machine with 2pcs EPSON i3200 heads
2)1.8 Foil printing machine with 4pcs EPSON i3200 heads
3)2.1m foil printing machine with 16pcs EPSON i3200 heads
What is a sublimation Golden foil printing machine?
A sublimation Golden Foil Printing machine is a system that combines sublimation printing and Golden foil transfer technology to create metallic foil effects on polyester or polyester-coated fabrics using heat and pressure.
Typical Features

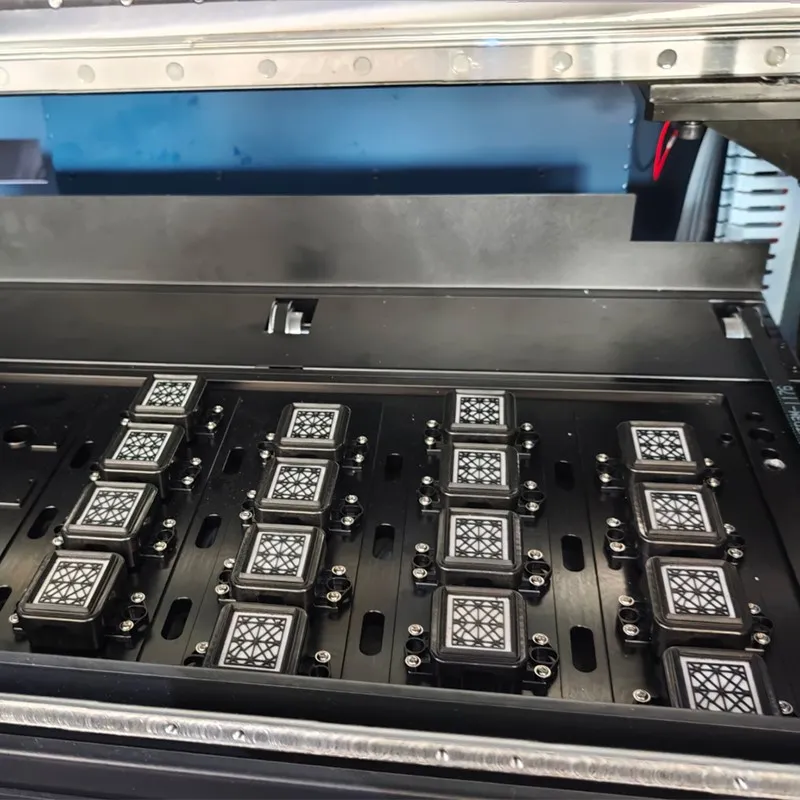

Auto capping system with moisture wiper to wipe the head surface to lower the risk of head blocking.

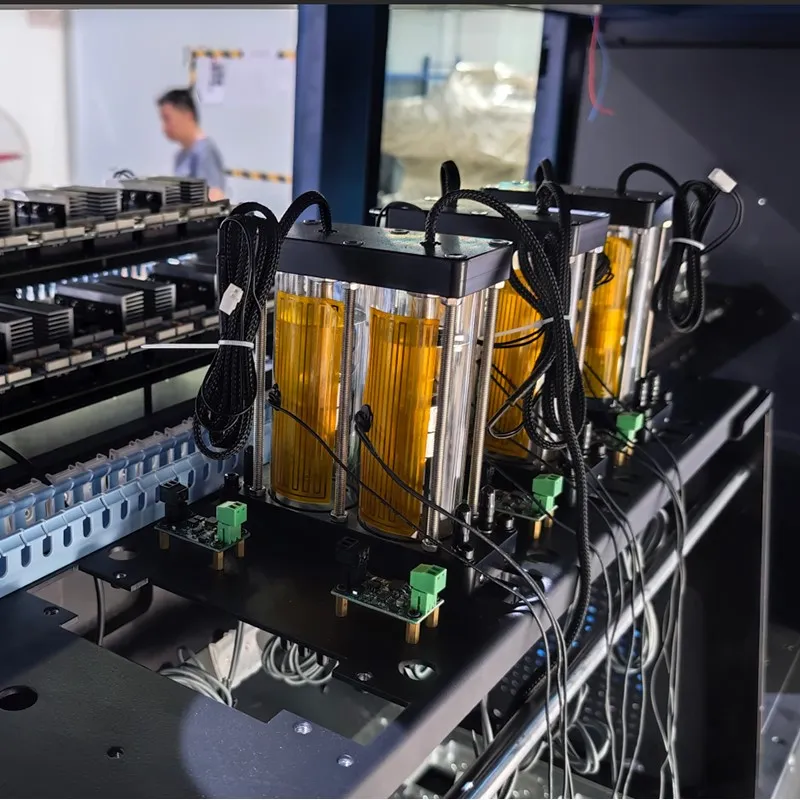

Glass cartridge with heater and temperature controller,can optimize ink fluidity.

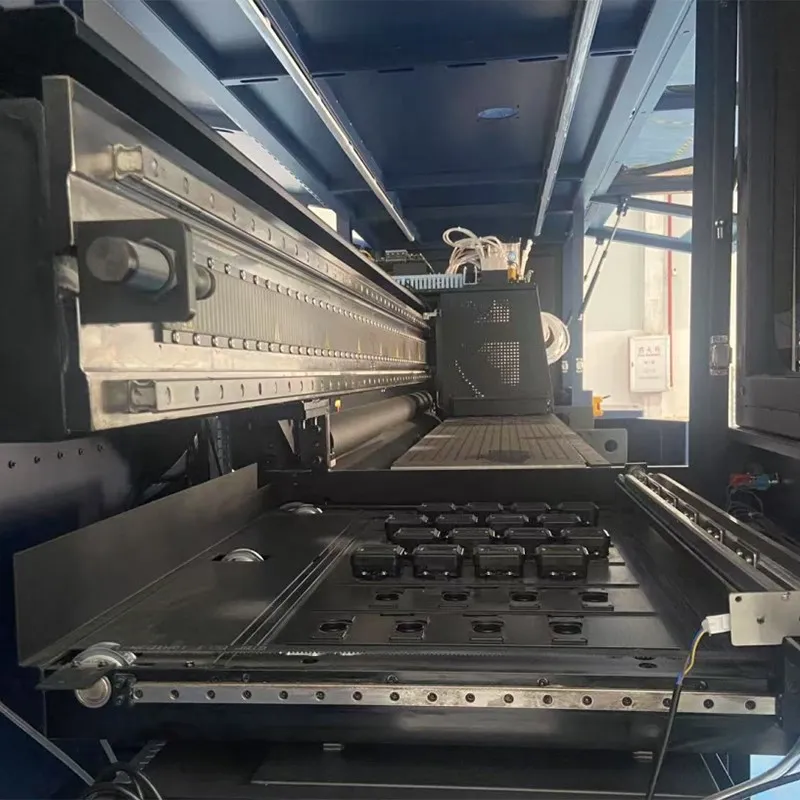

Maglev linear motor,eliminate friction between mechanical components,lower noise

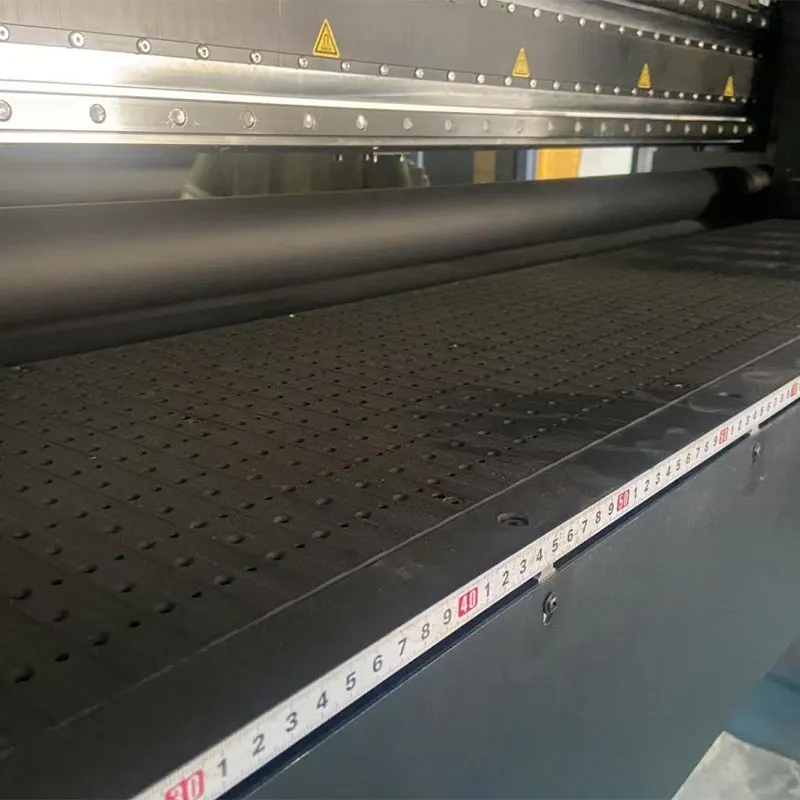

Water cooling platform, keep the platform in appropriate temperature ,reduce the risk of glue head blocking

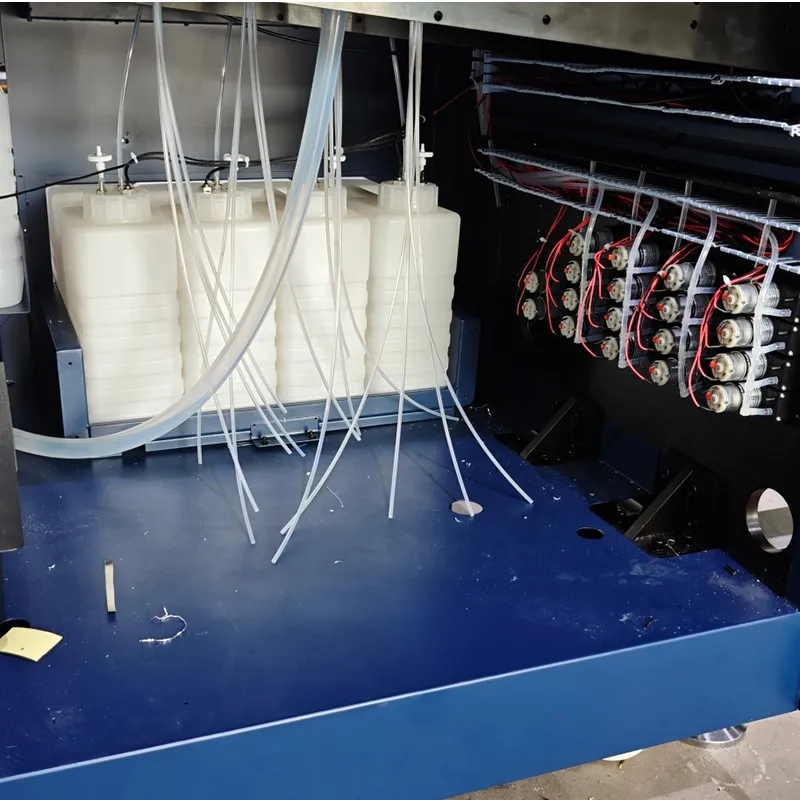

Positive ink supply system can guarantee continuous ink supply. during long time printing work
3m 3layer drying room, totally drying area 9m. drying room size :3900*2150*1900mm
Technical Parameters
|
Model No.: |
FS2116 |
|
Printhead : |
EPSON i3200-A1 |
|
Head No.: |
16H |
|
Printing Model： |
Glue+CMYK |
|
Max Printing Width: |
2100mm |
|
Printing Resolution: |
360*2400dpi /720*2400dpi |
|
Printing Speed: |
4pass 135~150 m²/H |
|
Media Type |
:Foil Film |
|
Ink Type: |
Sublimation ink |
|
Glue Type: |
Water based adhesive |
|
Drying System: |
3m drying room with 3 layer drying space |
|
Board Type: |
Honson |
|
Interface: |
USB3.0 |
|
RIP Software: |
RIIN |
|
Power Consumption: |
Printer:6KW , Heating Room:30KW |
|
Machine Size |
Printer 4355*1285*1990mm Take up :700*2670*1150mm |
|
Packing Size: |
Printer：4450*1590*2100mm Take up:720*2750*1240mm |
|
Drying Room Packing Size: |
4000*2200*2100mm |
